Advanced Access Control Solutions

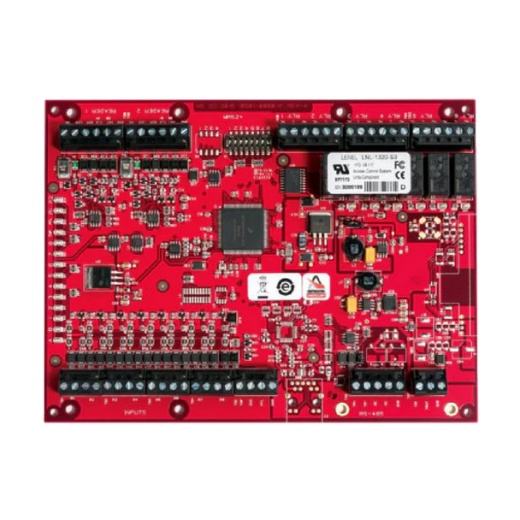

The Lenel AFF-LNL-1320-S3 Dual Reader Interface Module (Series 3 –Supports OSDP Readers) is designed to provide advanced access control solutions for your facility. With its ability to support up to 16 different card formats, including magnetic and Wiegand formats, this module ensures that you have the flexibility you need to manage access control.
Secure Communication
The Lenel Dual Reader Interface Module uses Advanced Encryption Standard (AES) 128-bit algorithm for communications to ISC, ensuring that your data is secure and protected from unauthorized access. This module also supports Open Supervised Device Protocol (OSDP) readers, including biometric template transfer and Secure Channel encryption.
Flexibility and Expandability
The Dual Reader Interface Module can support up to 32 modules multi-dropped using RS485 2-wire or 4-wire communication, allowing you to expand your access control system as needed. Each module is individually addressed, providing increased reporting capabilities with OnGuard access control software applications.
Enhanced Security Features
This module includes eight inputs that support normally open, normally closed, supervised, and non-supervised circuits, as well as six output relays that support fail-safe or fail-secure operation. Additionally, it has dedicated tamper and power failure circuits, ensuring that your system is secure and reliable.
Easy Installation and Configuration
The Lenel Dual Reader Interface Module is easy to install and configure, with on-board jumpers for termination and an on-board regulator that allows 12 VDC reader support from 24 VDC power source. The module also has DIP switch-selectable addressing, making it easy to set up and integrate into your existing system.
