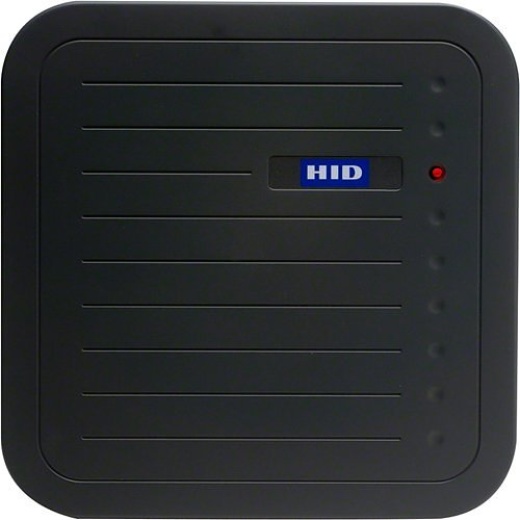

HID 5375AGN00 MaxiProx 125kHz Long Range Proximity Reader with Wiegand Output, Terminal, Charcoal Gray
HID's MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.
- Long read range distance (up to 6' with ProxPass).
- Autotune allows read range to be maintained within 4" of metal.
- Wiegand, Clock-and-Data, RS-232 and RS-422 output modes are configurable.
- Parking hold feature ensures accurate detection of vehicles in parking lanes.
- Power requirements: 12 or 24 VDC (configurable).
- Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC.
- Dimensions: 12.0" x 12.0" x 1.0" (30.5 x 30.5 x 2.54 cm).
- Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations.
- Reader supervision signal for CASI-RUSCO panels.
