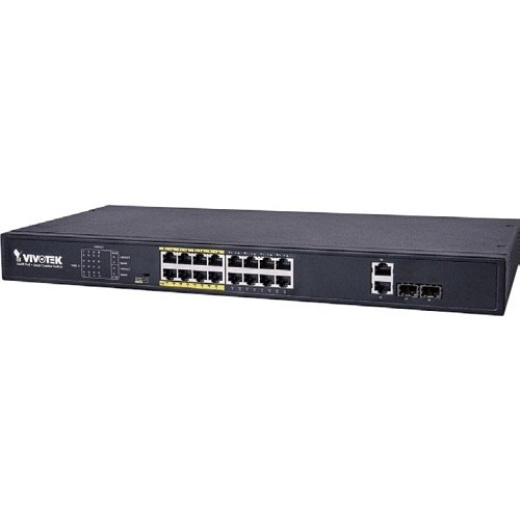

Extend PoE up to 250 meters at 10 Mbps | Surge Proection 6KV 16*10/100Mbps PoE RJ45 Ports 2*10/100/1000Mbps Combo Ports IEEE 802.3af/at Compliant Supports PoE Power up to 30W for each PoE Port 6KV PoE Surge Protection each Port 20% Range of Input Voltage Tolerance (280VAC 4hrs, 300VAC 1min) Circuit Protection Prevents Power Interference between Ports Detects PoE PD (Power Device) Automatically ST Mode Reaches PoE Camera up to 100M @ 100Mbps via any PoE Port VLAN Mode Isolates each Port to Prevent Broadcast Storm EX Mode Reaches PoE Camera up to 250M @ 10Mbps via EX PoE Ports Overview VIVOTEK's AW-FGT-180D-250, equipped with DIP switch provides ST Mode as STandard mode, ST VLAN as STandard VLAN mode, and EX Mode as EXtend mode. Especially designed for IP Surveillance applications, the camera provides standard 802.3af/at PoE functions in ST mode, while EX mode transmits data & power on one single cable up to 250 meters at 10 Mbps via 8 EX ports for long-reach PoE IP cameras. The AW-FGT-180D-250 also adds an extra 20% range of input voltage tolerance (280VAC 4hrs, 300VAC 1min), and lightning surge protection of AC power & PoE surge protection to prevent the damage caused by unstable outside AC power, lightning surges, and power spikes. These unique features reduce costs associated with the replacement of damaged units.
- Effectively reduces downtime with improved network performance
- Features 18 networking ports to easily establish a local network or expand your existing one
- No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Features 18 networking ports to easily establish a local network or expand your existing one
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
