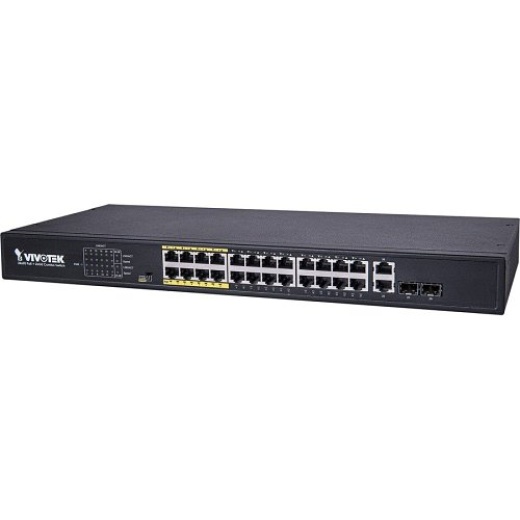

VIVOTEKs AW-FGT-260D-380, equipped with DIP switch provides ST Mode as STandard mode, ST VLAN as STandard VLAN mode, and EX Mode as EXtend mode. Especially designed for IP Surveillance applications, the camera provides standard 802.3af/at PoE functions in ST mode, while EX mode transmits data & power on one single cable up to 250 meters at 10 Mbps via 8 EX ports for long-reach PoE IP cameras. The AW-FGT-260D-380 also adds an extra 10% range of input voltage tolerance (280VAC 4Hr, 300VAC 1min), and lightning surge protection of AC power & PoE surge protection to prevent the damage caused by unstable outside AC power, lightning surges, and power spikes. These unique features reduce costs associated with the replacement of damaged units. Extend PoE up to 250 meters at 10 Mbps Surge Proection 6KV
- 24*10/100 Mbps PoE RJ45 Ports
- 2*10/100/1000 Mbps Combo Ports
- IEEE 802.3af/at Compliant
- Supports PoE Power up to 30W for each PoE Port
- 6KV PoE Surge Protection each Port
- 20% Range of Input Voltage Tolerance (280VAC 4hrs, 300VAC 1min)
- Circuit Protection Prevents Power Interference between Ports
- Detects PoE PD (Power Device) Automatically
- ST Mode Reaches PoE Camera up to 100M @ 100Mbps via any PoE Port
- VLAN Mode Isolates each port to Prevent Broadcast Storm
