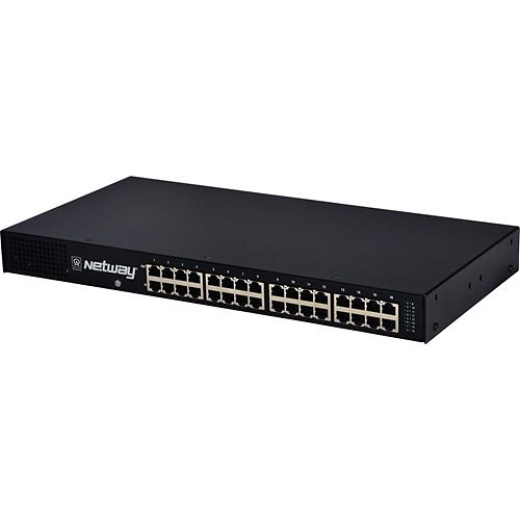

The Altronix NetWay16G is a high-performance 16-port managed PoE/PoE+ midspan injector designed for enterprise security, surveillance, and network infrastructure applications. Delivering up to 30W per port and a robust 480W total power budget, the NetWay16G supports IP cameras, access control devices, VoIP phones, and other PoE-enabled edge devices over standard CAT5e or better cabling.
Engineered in a compact 1U rackmount chassis, this Gigabit midspan passes data at 10/100/1000 Mbps up to 100 meters while delivering IEEE 802.3af and 802.3at compliant power. Integrated LINQ™ network management technology provides remote monitoring, diagnostics, device reset capabilities, and real-time power alerts via LAN/WAN.
Key Features & Benefits- Sixteen (16) PoE/PoE+ ports (IEEE 802.3af / 802.3at compliant)
- Up to 30W per port
- 480W total power budget
- Gigabit 10/100/1000 Mbps data transmission
- Embedded LINQ™ remote network management
- Real-time diagnostics with email & Windows dashboard alerts
- Integral battery charger for backup applications
- Auto detection & protection of non-PoE devices
- 1U EIA 19" rack mount enclosure
- UL Listed (US & Canada) and CE compliant
- Lifetime Warranty
The NetWay16G is ideal for powering and managing:
- IP security cameras
- Access control systems
- Network video recorders (NVRs)
- Enterprise LAN/WAN infrastructure
- Government, education, and commercial installations
| Specification | Details |
|---|---|
| Model | NetWay16G Managed PoE Midspan Injector |
| PoE Standards | IEEE 802.3af (15W) & IEEE 802.3at (30W) |
| Ports | 16 x RJ45 |
| Data Speed | 10/100/1000 Base-T, Auto Negotiation |
| Power per Port | Up to 30W |
| Total Power Output | 480W |
| Input Voltage | 115VAC 60Hz (4.5A) or 230VAC 50Hz (2.5A) |
| Ethernet Distance | Up to 100m over CAT5e or better |
| Battery Charging | Supports sealed lead acid or gel type batteries (sold separately) |
| LED Indicators | IP Link Status, Port Status, Power |
| Dimensions | 1.625” x 19.125” x 8.5” (1U Rack Mount) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Humidity | 85% ±5% |
| Compliance | UL Listed (UL60950-1), CE |
| Warranty | Lifetime Warranty |
Affinitech Store provides enterprise-grade PoE infrastructure solutions backed by expert support and competitive pricing. The Altronix NetWay16G delivers reliable Gigabit PoE power distribution with advanced remote management, making it a trusted solution for modern security and IT deployments.
