Hanwha Techwin AFF-XND-8020F Overview

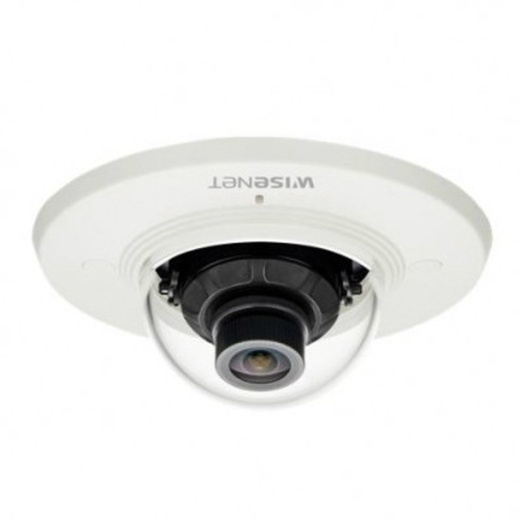

Keep a watchful eye on your property with the black-and-ivory WiseNet X Series AFF-XND-8020F 5MP Network Dome Camera from Hanwha Techwin. Equipped with a 1/1.8" 6MP CMOS sensor and a 3.7mm fixed lens, the AFF-XND-8020F captures video at resolutions up to 2560 x 1920 at 30 fps in a 97.5 x 71.9° field of view. The camera uses a built-in microphone to stream audio along with the video signal.
The AFF-XND-8020F has an automatic digital IR cut filter and image enhancing features including wide dynamic range and automatic white balance for capturing images in varying lighting conditions. PoE enables you to run just one wire for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
- 5MP @ 30fps
- Triple codec H.265/H.264/MJPEG
- 3.7mm fixed lens
- Wide dynamic range 120dB
- On-board analytics (business/audio and video)
- Digital image stabilization
- Magnetic cover and a built-in mic
- Built-in retail business intelligence analytics
- USB for easy installation
- 2560 x 1920 resolution at 30 fps
- Built-in 3.7mm fixed lens
- Up to 30 fps at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- 120 dB wide dynamic range
- Defog functionality
- Video analytics including loitering detection, directional detection, fog detection, audio detection, digital auto tracking, sound classification, heatmaps, people counting, queue management, tamper detection, motion detection, and handover
- SD/SDHC/SDXC memory slot for edge storage supports up to 256GB (SD/SDHC/SDXC cards available separately)
- PoE technology for easy, clutter-free installation
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- Integrated Lens Distortion Correction (LDC) technology
WiseNet X powered by WiseNet 5 network flush mount dome camera, 5MP @ 30fps WDR off/on(120dB), 3.7mm fixed lens (97.5°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics, Business analytics and sound classification, built-in Mic, Magnetic Cover, Electronic D/N, SD card, Hallway view, HLC, Defog detection, DIS, PoE, (Black and white covers are optional)
Key Features- 2560 x 1920 Resolution at 30 fps
- Automatic Digital IR Cut Filter
- 3.7mm Lens with f/1.6 Aperture
- 97.5 x 71.9° H/V Field of View
- Built-In Microphone
- 120 dB Wide Dynamic Range
- SD Slot Supports up to 256GB Cards
- RJ45 Ethernet with PoE
- Video and Audio Analytics
- ONVIF Compliant, Profiles S and G
