Hanwha Techwin AFF-XNP-6120H Overview

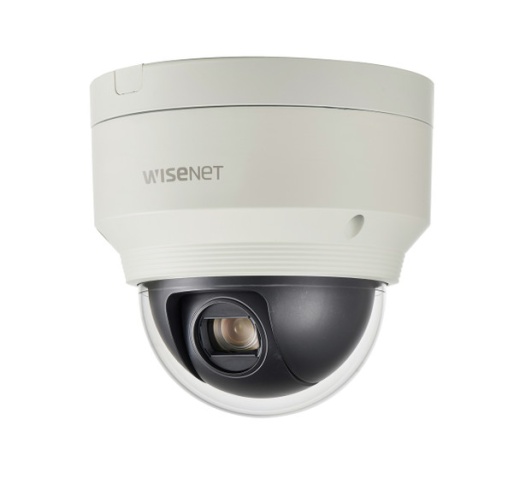

Keep a close watch on your property with the ivory WiseNet X Series AFF-XNP-6120H 2MP Outdoor PTZ Network Dome Camera from Hanwha Techwin. Equipped with a 1/2.8" 2.16MP CMOS sensor and a 5.2-62.4mm varifocal lens, the AFF-XNP-6120H captures video at resolutions up to 1920 x 1080 at 60 fps in fields of view ranging from 54.6 x 32.2° to 5.3 x 3°. The camera has an automatic IR cut filter and offers image enhancement features including wide dynamic range and automatic white balance for capturing images in varying lighting conditions.
The AFF-XNP-6120H has PTZ functionality, with 360° endless pan, 190° tilt, and 12x optical zoom. Audio input and output connections allow for two-way audio communication. Designed for easy setup, the AFF-XNP-6120H uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
- Up to 2MP 1920 x 1080 resolution (16:9 aspect ratio)
- Built-in 5.2-62.4mm 12x varifocal lens
- 32x digital zoom
- Up to 60 fps at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- IR cut filter for day and night vision
- 150 dB wide dynamic range
- Digital image stabilization with built-in gyro sensor
- Video and audio analytics including tamper detection, loitering detection, directional detection, fog detection, virtual line, enter/exit, appear, disappear, audio detection, face detection, motion detection, and sound classification
- Two microSD/SDHC/SDXC memory card slots for edge storage support up to 512GB (microSD/SDHC/SDXC cards available separately)
- PoE technology for easy, clutter-free installation
- IP66 rated for outdoor use
- IK10-rated vandal resistance
- 2 megapixel (1920 x 1080) resolution
- 12X optical zoom (5.2 ~ 62.4mm) (54.58? ~ 5.30?)
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- WiseStream II support
- IP66, IK10
WiseNet X powered by WiseNet 5 network outdoor PTZ camera, 2MP, Full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB), 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), Pan: 360° Endless. Tilt: -5°~ 185°, H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, HLC, Defog detection, DIS , 12VDC/PoE, IP66, IK10, -22°F ~ 131°F
Key Features- 1920 x 1080 Resolution at 60 fps
- Automatic IR Cut Filter
- 5.2-62.4mm Lens with f/1.6-3.0 Aperture
- 54.6 to 5.3° Horizontal Field of View
- 360/190° Pan/Tilt and 12x Optical Zoom
- Input and Output for Two-Way Audio
- 2 microSD Card Slots Support up to 512GB
- RJ45 Ethernet with PoE
- ONVIF Compliant, Profiles S and G
- IP66 and IK10 Rated
Keep a close watch on your property with the ivory WiseNet X Series AFF-XNP-6120H 2MP Outdoor PTZ Network Dome Camera from Hanwha Techwin. Equipped with a 1/2.8" 2.16MP CMOS sensor and a 5.2-62.4mm varifocal lens, the AFF-XNP-6120H captures video at resolutions up to 1920 x 1080 at 60 fps in fields of view ranging from 54.6 x 32.2° to 5.3
