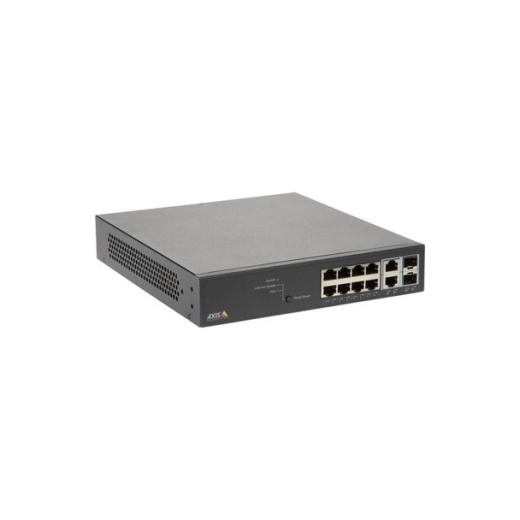

AXIS Communications T8508 POE+ Network Switch, AFF-01191-004
Axis Communications T8508 PoE+ network switch is a managed fan less gigabit network switch, optimized for Axis network products.
The T8508 has 2 SFP/RJ45 uplink ports and 8 PoE+ ports with a 130W power supply.
Built in DCHP server for plug-and-play camera setup. the T8508 allows for easy system configuration for effective installation of Axis network products.
- Fan-less for noise sensitive installations
- Optimized for surveillance solutions
- Easy installation and configuration
- Unique web graphic user interface
Manage a variety of network devices including PoE compliant network components such as IP cameras, access points, and more with the T8508 8-Port Gigabit PoE+ Managed Switch from Axis. This switch comes equipped with eight Gigabit Ethernet ports each supplying up to 30W of PoE power, along with an overall power budget of 130W. Alongside the Gigabit Ethernet ports, the T8508 comes equipped with dual combination RJ45/SFP ports to connect uplink devices directly to the switch. Once configured, this Axis switch supports a 20 Gb/s switching capacity, a 14.9Mpps forwarding rate, an 8K MAC address table, and 9216 Bytes jumbo frame support to ensure optimal network performance to all connected clients.
Easy to Install and Configure The AXIS T8508 PoE+ Network Switch is easy to install by using standard Axis tools as AXIS IP Utility and AXIS Camera Management. The AXIS T8508 also comes with an individual password, an easy to use setup wizard and a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution. Discrete, Compact, and Fanless The AXIS T8508 PoE+ Network Switch is a compact, fanless 8-port switch designed for installations in noise-sensitive environments. The compact design enables discreet installations. Unique User Interface The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more. Key Features- 8 x Gigabit Ethernet Ports
- 2 x Combination RJ45/SFP Ports
- 20 Gb/s Switching Capacity
- 14.9 Mpps Throughput
- 8K MAC Address Table
- 9216 Bytes Jumbo Frame
- 130W PoE Power Budget
- 30W PoE per Port
