Ubiquiti 3 Ghz Airmax 26 Dbi Rocketdish Antenna

SKU: AFF-RD-3G26
Out of stock
Out of stock
Unit Price
Quantity
US$ 320.41
Out of stock
Options
Barcode
810354021275
Description

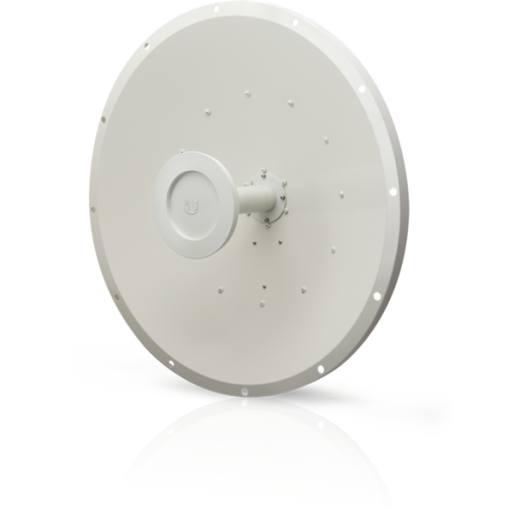

Ubiquiti 3 GHz airMAX 26 dBi RocketDish Antenna, AFF-RD-3G26

Pair a RocketDish™ antenna with a Rocket® basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP's customers.

AFF-RD-3G26 Dimensions
  • 650 x 650 x 300 mm (25.6 x 25.6 x 11.81")
  • Weight 9.8 kg (21.61 lb)
AFF-RD-3G26 Specifications
  • Frequency Range 3.3 - 3.8 GHz
  • Gain 26 dBi
  • HPOL Beamwidth 7° (3 dB)
  • VPOL Beamwidth 7° (3 dB)
  • F/B Ratio 33 dB Max.
  • VSWR 1.4:1
  • Wind Loading 787 N @ 200 km/h (177 lbf @125 mph)
  • Wind Survivability 200 km/h (125 mph)
  • Polarization Dual-Linear
  • Cross-pol Isolation 35 dB Min.
ETSI Specification
  • EN 302 326 DN2
Mounting
  • Universal Pole Mount,
  • Rocket Bracket
  • Weatherproof RF Connectors Included

Shipping specs
Weight
9.8 lbs
Shipping from
This product is shipped from our supplier's warehouse in Chanhassen, MN, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
