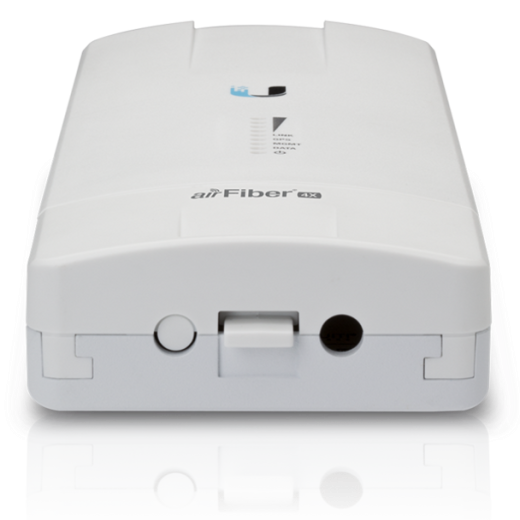

Ubiquiti Airfiber 4X Radio

Ubiquiti Networks introduces the airFiber® AF-4X, Ubiquiti’s first licensed spectrum radio designed for the public safety sector. It meets the growing need of broadband capacity and optimizes use of the 4.9 GHz radio band with its industry-leading spectral efficiency and TDD throughput. The AF-4X allows you to customize airFiber backhaul links or upgrade existing Rocket® Point?to?Point (PtP) links. airFiber 4X Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") Weight 0.35 kg (0.77 lb) RF Connectors (2) RP-SMA Weatherproof (CHO, CH1) (1) SMA Weatherproof (GPS) Antenna/td> External, Magnetic Base Power Supply/td> 24V, 1A PoE Gigabit Adapter (Included) Power Method/td> Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) Max. Power Consumption/td> 12W Supported Voltage Range/td> 19-29VDC Mounting/td> airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) Certifications/td> CE, FCC, IC Operating Temperature/td> -40 to 55° C (-40 to 131° F) AF-4X Networking Interface Data Port (1) 10/100/1000 Ethernet Port Management Port (1) 10/100 Ethernet Port AF-4X System Processor INVICTUS IC Maximum Throughput 500+ Mbps Maximum Range 200+ km1 Encryption 128-bit AES OS airOS® F Wireless Modes Master/Slave
