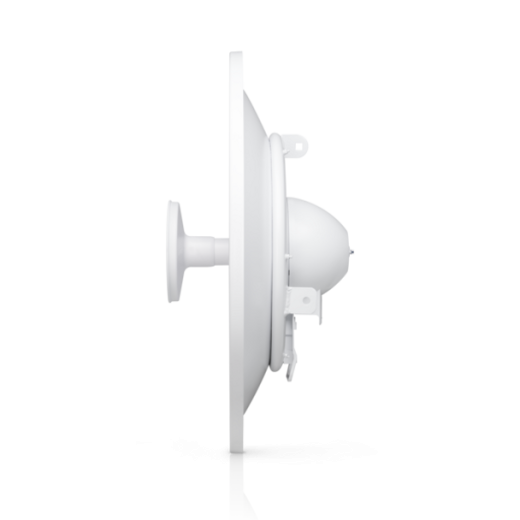

Ubiquiti airFiber 3 GHz, 26 dBi S45 Antenna, AFF-AF-3G26-S45
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISPs customers.
AFF-AF-3G26-S45 Dimensions*- ø650x300mm (ø 25.59 x 11.81")
- Weight** 9.8 kg (21.61 lb)
- * Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
- ** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)
- Frequency Range 3.3 - 3.8 GHz
- Gain 26 dBi
- + 45° Beamwidth 7° (3 dB) - 45° Beamwidth 7° (3 dB)
- F/B Ratio 33 dB Max.
- VSWR 1.4:1
- Wind Loading 787 N @ 200 km/h (177 lbf @125 mph)
- Wind Survivability 200 km/h (125 mph)
- Polarization Dual-Linear
- Cross-pol Isolation 35 dB Min.
- ETSI Specification EN 302 326 DN2
- Mounting Universal Pole Mount
- airFiber X Radio Bracket
- Weatherproof RF Connectors Included
