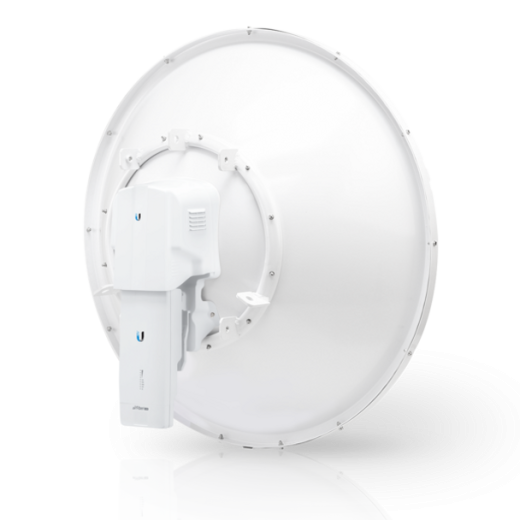

Ubiquiti Airfiber 11 Ghz Low-Band Backhaul Radio With Dish Antenna

Ubiquiti airFiber 11 GHz Low-Band Backhaul Radio with Dish Antenna, AFF-AF11-COMPLETE-LB

airFiber 11 is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market that breaks free from the congested 5 GHz band. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. Features: Full duplex point-to-point radio 11 GHz frequency operation Up to 1.2+ Gbps throughput Includes one low-band duplexer for SISO mode (MIMO mode requires an optional second duplexer) Integrates with AF-11G35 11 GHz antenna Supports separate TX/RX frequencies Accepts PoE or DC power

• 327 x 112 x 86 mm (12.87 x 4.41 x 3.39")
• Weight 2.26 kg (5.0 lb)

• RF Connectors (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
• (2) N-Type Waterproof, One per Duplexer
• Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
• Power Method Passive Power over Ethernet, DC Power Block)
• Power Supply UniFi PoE Switch
• Supported Voltage Range 38-56VDC
• Operating Temperature -40 to 55° C (-40 to 131° F)
• Frequency 10.3 to 11.7 GHz Gain 35 dBi
• HPOL Beamwidth 2.5°
• VPOL Beamwidth 2.5°
• Maximum VSWR 2:1
• Wind Loading 1538 N @ 200 km/h (346 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• Polarization Default After Rotating OMT H/V ± 45°
• Cross-Pol Isolation 35 dB Mounting Pole Mount Pattern

• FCC Part 101
• ETSI EN 302 217

• AF-11G35 Mount Compatible
• Weight Mount Not Included
• Dimensions 811 x 811 x 460 mm (31.9 x 31.9 x 18.1")
• Mount Included 7.14 kg (15.74 lb) 11.85 kg (26.12 lb)

• Data Management (1) 10/100/1000
• Ethernet Port (1) 10/100 Ethernet Port
• System Processor INVICTUS 2 IC
• Maximum Throughput 1.2+ Gbps
• Encryption 128-bit AES
• OS: airOS F Wireless Modes SISO/MIMO
• Operating Frequency 10.7-11.7 GHz (Depends on Regulatory Region*) Max. Conducted TX Power 30 dBm (Depends on Regulatory Region*)
• Frequency Accuracy ± 1 ppm
• Channel Bandwidth 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable**
• Programmable Uplink and Downlink Duty Cycles airFiber AF?11G35

• ETSI 302 217-4-2,
• Class 3 and FCC Cat B * For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber ** Channel widths may vary according to country/region regulations.
