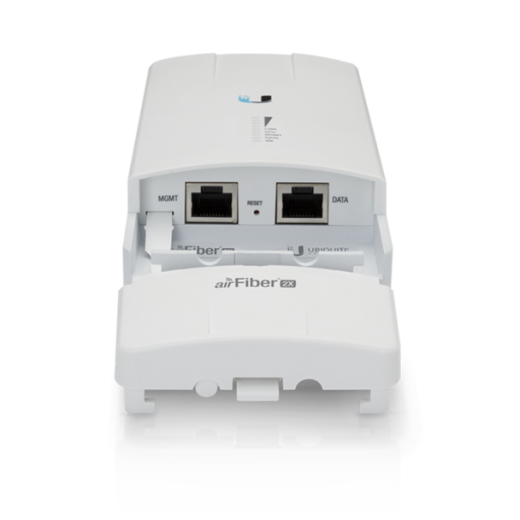

Ubiquiti airFiber 2.4 GHz Radio, AFF-AF-2X-US
Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISPs customers.
airFiber Dimensions- 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
- Weight 0.35 kg (0.77 lb)
- GPS External
- Magnetic Base
- Operating Frequency 2.4GHz
- Power Supply 24V
- 1A PoE Gigabit Adapter (Included)
- Power Method: Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
- Maximum Power Consumption 17W @ Max.
- Power/Duty Cycle Supported Voltage Range 19-29VDC
- Mounting: airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included)
- Certifications CE, FCC, IC
- Operating Temperature -40 to 55° C (-40 to 131° F)
- Interface Data Port: (1) 10/100/1000
- Ethernet Port Configuration Port: (1) 10/100
- Ethernet Port System Processor INVICTUS IC Maximum Throughput 525 Mbps
- Maximum Range 200+ km
- Encryption 128-bit AES
- Operating System airOS
- F Radio Frequency Max TX Power: 30 dBm (Dependent on Regulatory Region)
- Frequency Accuracy ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization
- Channel Bandwidth 3.5/5/7/10/14/20/28/30/40/50/56 MHz
- Selectable Programmable Uplink and Downlink Duty Cycles Independently Programmable TX and RX Frequencies
