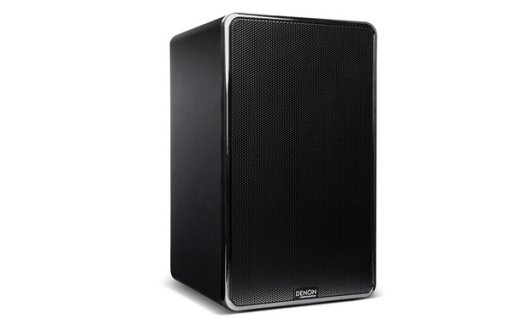

The AFF-DN-508S is a compact 3-way tri-amplified speaker capable of exceptionally high performance, suitable for a variety of roles. It is ideal for situations where no-compromise acoustic performance is needed, but where complicated setups and elaborate stacks of external equipment are not feasible or possible. It features studio-grade acoustics, luxurious aesthetics, and innovative proximity controls for flexible placement options.
The 220-watt AFF-DN-508S provides clear, dynamic sound reproduction for mid- and small-size meeting and presentation spaces. Combining 1-inch silk dome tweeter, a 5-inch woven Kevlar midrange unit, and an 8-inch woven Kevlar woofer, it offers a dynamic, wide-range frequency response, even exceeding the performance of speakers found in world-class recording studios.
Well-designed 3-way speakers—like the AFF-DN-508S—use a custom high-quality midrange driver specifically intended to cover the critical middle frequencies. Most of the everyday sounds we hear—voices, instruments like saxophone and guitar, naturally-occurring sounds like handclaps, footsteps and slamming doors—are midrange frequencies. Having a driver specifically dedicated to their reproduction maximizes clarity and detail, ideal for situations requiring exceptional speech intelligibility.
The midrange and tweeter are mounted in line with each other (the tweeter is mounted at the apex of the midrange) at precisely the same point in space. Doing so means the sound of the two drivers integrates perfectly, without the audibly-distracting time/arrival distortion of widely-spaced drive units. Instead, our in-line driver design propagates its output in a seamless, uninterrupted time envelope, markedly improving definition and clarity.
A fortuitous by-product of the in-line midrange/tweeter array is that the speaker’s cabinet is no larger than that of a conventional 2-way speaker.
The woofers and midrange are made of Kevlar®. This is an ideal driver diaphragm material: Incredibly strong, stiff and light (it’s even used in military body armor). It provides an incredibly fast transient attack, excellent sensitivity and great resistance to cone flexing and resonant breakup at high power levels.
The dome tweeter uses Ferro-fluid voice coil cooling for added reliability at high power inputs, and Its woven-silk diaphragm imparts virtually no harshness or “listening fatigue” at any SPL, as is often the case with less sophisticated tweeters.
Additionally, a concave integrated tweeter waveguide in front of the midrange cone precisely focuses and directs the treble energy into the listening field, ensuring a solid and stable sonic image while minimizing the random acoustic “scatter” that would otherwise cause the acoustic image to be unfocused and indistinct.
Finally, close attention was paid to the cabinet. It’s radiused at the edges to aid in dispersion and reduce audibly-destructive edge diffraction. The cabinet’s internal bracing has been optimized to ensure that the drivers have a solid, vibration-free platform from which to launch their sound, using computer calculations to determine the woofer port’s characteristics for the best possible bass response.
- Co-axial mid/hi drivers for vocal clarity
- 8” woven Kevlar low frequency driver
- 5.25” woven Kevlar mid frequency driver
- 1” silk-dome tweeter
- Versatile 3-band EQ
- Class A/B tri-amplification: 220 watts RMS total (150/35/35)
- 4 VESA mounts on bottom panel and M10 rigging port
