Ubiquiti Airfiber 11

SKU: AFF-AF-11
Out of stock
Out of stock
Unit Price
Quantity
US$ 1,397.78
Out of stock
Options
Barcode
817882022286
Description

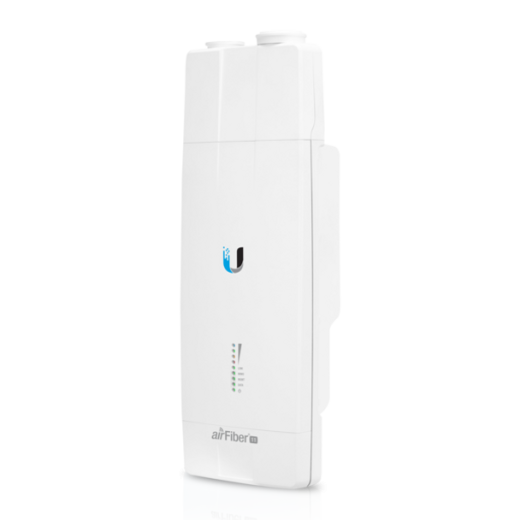

Ubiquiti airFiber 11, AFF-AF-11

Breaking free from the congested 5 GHz band, airFiber® 11 is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. Features Full duplex Point-to-Point radio 11 GHz frequency operation Up to 1.2+ Gbps throughput Proprietary INVICTUS™ processor Integrates with airFiber® 11 GHz antennas Utilizes distinct Rx and Tx frequencies Accepts PoE or DC power Secure 128-bit AES encryption

AFF-AF-11 Dimensions
  • 327 x 112 x 86 mm (12.87 x 4.41 x 3.39")
  • Weight 2.26 kg (5.0 lb)
AFF-AF-11 Specifications
  • RF Connectors (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
  • Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
  • Power Method Passive Power over Ethernet, DC Power Block Supported Voltage Range 38-56VDC
  • Operating Temperature -40 to 55° C (-40 to 131° F)

Certifications
  • FCC Part 101, ETSI EN 302 217
Mounting
  • AFF-AF-11G35 Mount Compatible
Networking Interface Data Management
  • (1) 10/100/1000 Ethernet Port
  • (1) 10/100 Ethernet Port
  • System Processor INVICTUS 2 IC Maximum Throughput 1.2+ Gbps
  • Encryption 128-bit AES OS airOS F
  • Wireless Modes: SISO/MIMO
  • Radio Operating Frequency 10.7-11.7 GHz (Depends on Regulatory Region*)
  • Max. Conducted TX Power 30 dBm (Depends on Regulatory Region*)
  • Frequency Accuracy ± 1 ppm
  • Channel Bandwidth 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz Selectable**
  • Programmable Uplink and Downlink Duty Cycles * For region-specific details, refer to the Compliance chapter of the airFiber AFF-AF-11FX User Guide at ui.com/download/airfiber ** Channel widths may vary according to country/region regulations.
Shipping specs
Weight
2.26 lbs
Shipping from
This product is shipped from our supplier's warehouse in Chanhassen, MN, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
