Bss Audio Ethernet Controller With 4 Buttons And Volume (White - Us)

SKU: AFF-EC-4BV-WHT-US
Unit Price
Quantity
Subtotal
US 431.81$
US 431.81$
US 429.22$1%
2
US 427.70$1%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Description

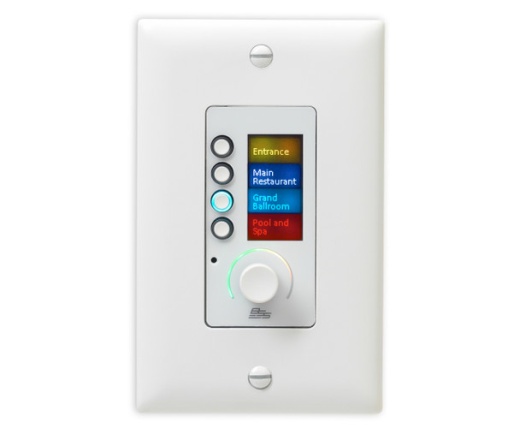

BSS Audio Ethernet Controller with 4 Buttons and Volume (White - US), AFF-EC-4BV-WHT-US

The Soundweb Contrio EC-4BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-4BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers.
The EC-4BV is available in black or white, and in single-gang US Decora or single-gang EU form factor. The EC-4BV contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-4BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.

The EC-4BV contains one push/rotary encoder, one encoder ring, four buttons, and one LCD screen. The buttons, encoder ring, and LCD screen are multi-color backlit, capable of eight different colors with adjustable intensity.

The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).

The four buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection.

The LCD screen has a screen resolution of 64x128 pixels, and can display custom text.

The EC-4BV supports ‘sleep’ functionality. After a specified amount of time with no user input, the EC-4BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will ‘wake up’ the controller.

The EC-4BV can be remotely locked and unlocked via other control systems. The EC-4BV can be locally unlocked via a four-digit PIN entry on the buttons.

The EC-4BV supports multiple modes of operation. This allows the push/rotary encoder and encoder ring to be reassigned dynamically to different parameters based on which buttons are selected.

Features

  • Ethernet Wall Controller
  • Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
  • Available in Black or White
  • Available in US Decora or EU Version
  • Single-Gang Size
  • PoE (Power Over Ethernet)
  • Configured within Audio Architect via Drag-and-Drop
  • 1 Programmable Push/Rotary Encoder
  • 1 Programmable Encoder Ring (Multicolored)
  • 4 Programmable Buttons (Multicolored)
  • 1 Programmable 64x128 Pixel LCD (Multicolored)
  • Sleep Function
  • Security: Remote Lock/Unlock and Local Unlock via PIN Entry
  • Multiple Modes of Operation
Shipping from
This product is shipped from our supplier's warehouse in Chanhassen, MN, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
