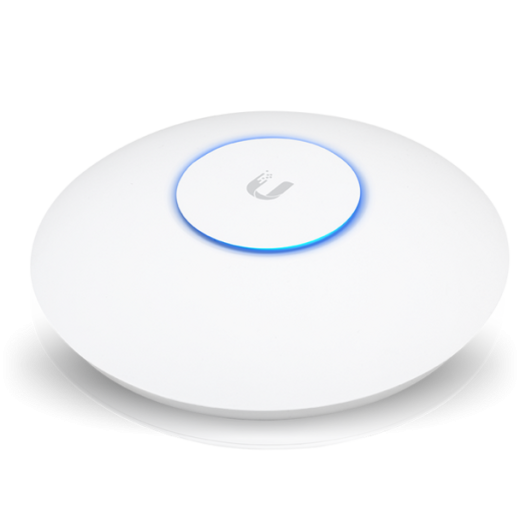

Ubiquiti UniFi HD Access Point, AFF-UAP-AC-HD-US
High-performance 802.11ac wave 2 access point with 4x4 MU-MIMO technology for high-density and performance-critical applications. Build your Wi-Fi network with the UniFi® HD Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-HD, is an indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Engineered from the ground up to take advantage of 802.11AC Wave 2, the UAP-AC-HD provides unparalleled multi-user support.
Dimensions- 220 x 220 x 48.1 mm
- Weight with Mounting Kits 700 g (24.7 oz) 830 g (29.3 oz)
- Networking Interface (2) 10/100/1000 Ethernet Ports
- Ports (2) Ethernet RJ45, (1) USB Type C
- Buttons Reset
- Antennas (2) 2.4G internal single band antennas, dual polarity (2) 5G internal single band antennas, dual polarity
- Wi-Fi Standards 802.11a/b/g/n/ac/ac-wave2
- Power Method PoE 802.3at
- Power Supply PoE Injector 48VDC -0.5A Gigabit
- Maximum Power Consumption 17W Max TX Power 25 dBm
- BSSID 4 Per Radio Power Save
- Supported Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Certifications CE, FCC, IC
- Mounting Wall/Ceiling (Kits Included)
- Operating Temperature -10 to 70° C (14 to 158° F)
- Operating Humidity 5 to 95% Noncondensing
- Advanced Traffic Management VLAN 802.1Q Advanced QoS Per-User Rate Limiting Guest Traffic Isolation
- Supported WMM
- Supported Concurrent Clients 500+
- Supported Data Rates (Mbps) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) 802.11ac 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
