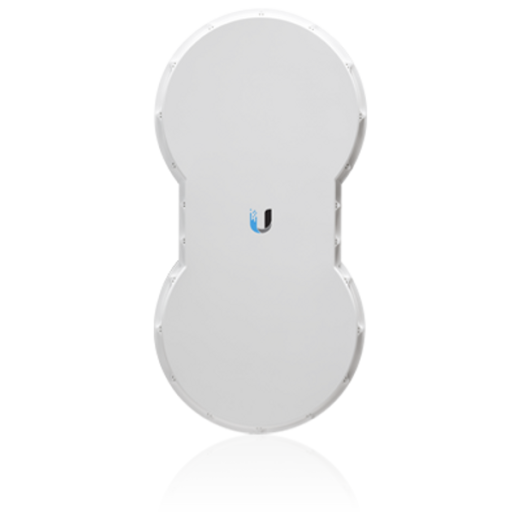

Ubiquiti Airfiber 5 Ghz High-Band Bridge

Out of stock
Out of stock
Unit Price
US$ 1,397.78
Out of stock

Revolutionary Wireless Technology Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks™. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. Supports high-band 5 GHz frequencies. NOTE: Price shown is for a single unit. airFiber® is normally purchased in pairs to form a single link. airFiber Operating Frequency 5725 - 5850 MHz (FCC 15.247, IC RSS 21) 5725 - 5875 MHz (ETSI EN 302 502) 5725 - 6200 MHz (Other Regions) Dimensions 938.4 x 468.4 x 281.4 mm Weight 16 kg (Mount included) Maximum Power Consumption 40 W Power Supply 50V, 1.2A PoE GigE Adapter (Included) Power Method Passive Power over Ethernet (42-58VDC) Certifications CE, FCC, IC Mounting Pole Mount Kit (Included) Wind Loading 194 lbf @ 125 mph Wind Survivability 125 mph Operating Temperature -40 to 55°C (-40 to 131° F) LEDs (12) Status LEDs: Data Port Link/Activity Data Port Speed Management Port Link/Activity Management Port Speed GPS Synchronization Master/Slave Link Status Modulation Mode 0.25x to 4x, 6x, 8x, Overload Remote and Local Displays (Calibrated Signal Strength) Interface Data Port (1) 10/100/1000 Ethernet Port Configuration Port (1) 10/100 Ethernet Port Auxiliary Port (1) RJ-12, Alignment Tone Port System Maximum Throughput 1.0+ Gbps Maximum Range 100+ km (Dependent on Regulatory Region) Packets per Second 1+ Million Encryption 128-Bit AES Forward Error Correction 164/205 Cyclic Prefix 1/16 Fixed Uplink/Downlink Ratio 50% Fixed Radio Frame Synchronization GPS Dynamic Frequency Selection CE, (FCC/IC Not Applicable) Radio Frequency GPS GPS Clock Synchronization EIRP ~33 dBm (FCC/IC), ~20 dBm (CE) Frequency Accuracy ±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization Channel Bandwidth 100 MHz Modulation 64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO ¼x QPSK SISO Integrated Split Antenna TX Gain 23 dBi RX Gain 23 dBi Beamwidth 6° Front-to-Back Ratio 70 dB Polarity Dual-Slant Polarization Cross-Polarity Isolation > 28 dB

Shipping specs
16 lbs
Shipping from
This product is shipped from our supplier's warehouse in Chanhassen, MN, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
