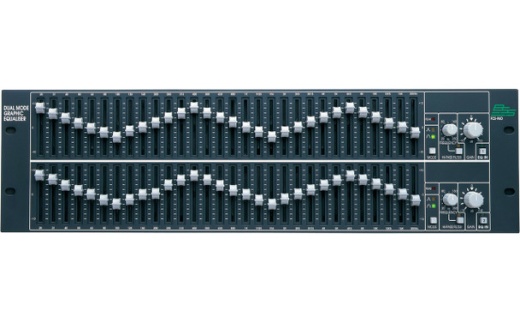

BSS Audio 30 band dual mode graphic equalizer (2 channels), AFF-FCS-960
The AFF-FCS-960 is a 30-band graphic equaliser featuring Dual Mode switching between Normal and Fine filter width settings on each channel.
The AFF-FCS-960 provides two channels in 3U of rack space. Constant Q-filters with filter-bypass centre taps are controlled by high grade, 45mm faders with moulded polymer fader knobs which eliminate visual parallax error even under low light conditions.
Also included are sweepable/switchable Hi-pass filter, Gain control and electronic balanced inputs and outputs.
More Details
AFF-FCS-960 DUAL MODE GRAPHIC EQUALISER
The graphic equaliser shall have two channels each having thirty boost/cut faders to control filters at standard third-octave isocentre frequencies from 25Hz to 20kHZ. Each fader shall have a 45 mm travel with a mechanical centre detent and electrical centre tap which removes its filter from the signal path at the zero fader setting. A Mode switch on each channel shall allow its filters to be configured with a Normal Q-factor or Fine Q-factor. In both Modes, the Q-factor of each filter shall be constant for any fader level setting.
Each channel shall have a Hi-Pass filter (18dB/Oct) variable between 20Hz-25OHz with independent bypass switch, Output Gain trim with LED Clip indicator and an EQ IN/OUT switch which defaults to a passive relay bypass in OUT mode. The relay bypass shall also operate automatically in case of power failure.
System performance shall meet or exceed the following specifications: THD @ +4dBu <0.005%; 20-20kHz faders flat; Output Noise <-90dBu 22 -22kHz faders flat. Maximum boost/cut shall be nominally +/- 10dB.
Inputs shall be electronically balanced (transformers optional), outputs shall be electronically balanced and floating (transformers optional). A Tamperproof Security Cover shall be available as an option. The graphic equaliser shall be 3U (5_"), 19" rackmount and capable of operating from a 90-120V or 190-250V AC power source.
BSS AFF-FCS-960.
Specifications
Chassis: 3U rack spaces
Input Connectors: XLR (2)
Output Connectors: XLR (2)
EQ Bands: 30 per channel (60 total)
Filter Width (Q): Constant-Q
EQ Gain - inf to +10dB
Metering +18dBu Peak Indicator (LED)
Bypass Switch: yes
