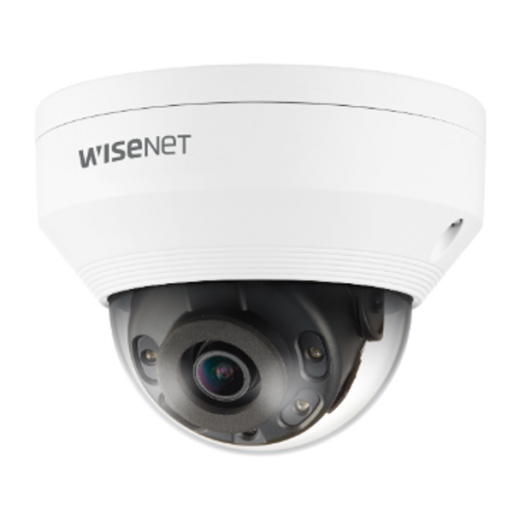

Hanwha Techwin AFF-QNV-6082R Overview
Monitor an outdoor area with the white AFF-QNV-6082R 2MP Network Dome Camera from Hanwha Techwin. This unit uses a 1/2.8" CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The camera's 3.2-10mm motorized varifocal lens delivers a 109 to 33.2° horizontal field of view. An audio input enables the AFF-QNV-6082R to pick up audio. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure for safe outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video codecs
- WiseStream II support
- Triple streaming
- Unicast and multicast streaming
- Up to six users in unicast mode
- CBR and VBR
- Electronic shutter
- 3.1x optical zoom
- Camera pivots horizontally from 0 to 350° and vertically from 0 to 67°
- 0 to 355° rotation
- Lens distortion correction
- Backlight compensation
- 120 dB wide dynamic range
- Digital noise reduction (SSNR)
- Gain control
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Privacy masking for up to six rectangular zones
- Flip, mirror, and hallway view (90/270°)
- Analytics include defocus detection, directional/virtual line detection, motion detection (four polygonal zones), enter/exit, and tampering
- 100M Ethernet port
- CVBS video output
- Audio input
- Alarm input and output
- Alarm triggers include analytics, network disconnect, and alarm input
- Alarm events include file upload via FTP and email, notification via email, microSD card or NAS recording at event triggers, alarm output, and handover
- Compatible with Windows 7, 8.1 & 10, Mac OS X 10.12 to 10.14, Chrome, Microsoft Edge, Internet Explorer 11, Firefox (Windows 64-bit only), and Safari (Mac OS X only)
- FCC, cUL, CE, and EAC certified
- 1920 x 1080 Resolution at 30 fps
- IR LEDs for Night Vision up to 98'
- 3.2-10mm Motorized Varifocal Lens
- 109 to 33.2° Horizontal Field of View
- Audio Input
- Supports microSD Cards up to 128GB
- RJ45 Ethernet with PoE Technology
- Complies with ONVIF Profiles G, S & T
- IP66 Rated for Outdoor Use
- IK10-Rated Vandal Resistance
- 2 Megapixel (1920 x 1080) resolution
- Built-in 2.8mm fixed lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m, IP66, IK10
- Hallway view support
- Analog video out for easy installation
- LDC support (Lens Distortion Correction)
- Genetec Stratocast compatible
Wisenet Q network outdoor vandal dome camera, 2MP @ 30fps, motorized vari-focal lens 3.1x (3.2 ~ 10.0mm) (109°~33°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 98', defocus detection, hallway View, one way audio and SD card, video analytics, CVBS, open platform, IP66, IK10, PoE/12VDC, white color
