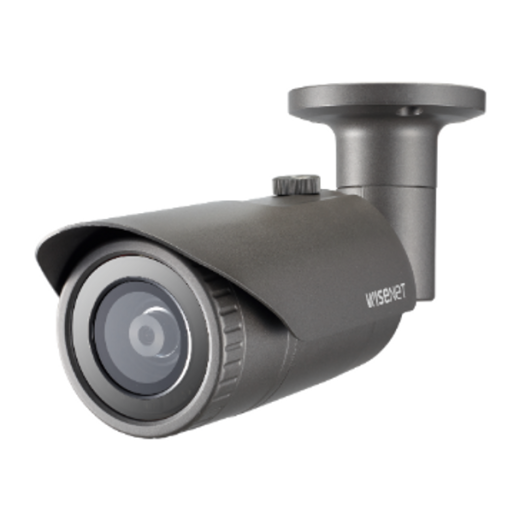

Hanwha Techwin AFF-QNO-8020R Overview
Monitor an outdoor area with the dark gray AFF-QNO-8020R 5MP Network Bullet Camera from Hanwha Techwin. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 82' of night vision. The camera's 4mm fixed lens delivers a 79.8° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles G, S & T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure for safe outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video codecs
- WiseStream II support
- Triple streaming
- Unicast and multicast streaming
- Up to six users in unicast mode
- CBR and VBR
- Electronic shutter
- 3-axis angle adjustments
- Lens distortion correction
- 120 dB wide dynamic range
- Digital noise reduction (SSNR)
- Gain control
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Motion detection for up to four polygonal zones
- Privacy masking for up to six rectangular zones
- Flip, mirror, and hallway view (90/270°) support
- Analytics include defocus detection, directional/virtual line detection, motion detection, enter/exit, and tampering
- 100M Ethernet port
- CVBS video output
- Alarm input and output
- Alarm triggers include analytics, network disconnect, and alarm input
- Alarm events include file upload via FTP and email, notification via email, microSD card or NAS recording at event triggers, alarm output, and handover
- Compatible with Windows 7, 8.1 & 10, Mac OS X 10.10 to 10.14, Chrome, Microsoft Edge, Internet Explorer 11, Firefox (Windows 64-bit only), and Safari (Mac OS X only)
- FCC, cUL, CE, and EAC certified
- 5 Megapixel resolution
- Built-in 4mm fixed lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE
- IR viewable length 25m, IP66, IK10
- Hallway view support
- Analog video out for easy installation
- LDC support (Lens Distortion Correction)
Wisenet Q network outdoor vandal bullet camera, 5MP @ 30fps, 4.0mm fixed focal lens (79°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 82', defocus detection, hallway View, SD card, video analytics, CVBS, open platform, IP66, IK10, PoE
Key Features- 2592 x 1944 Resolution at 20 fps
- IR LEDs for Night Vision up to 82'
- 4mm Fixed Lens
- 79.8° Horizontal Field of View
- Supports microSD Cards up to 128GB
- RJ45 Ethernet with PoE Technology
- Complies with ONVIF Profiles G, S & T
- IP66 Rated for Outdoor Use
- IK10-Rated Vandal Resistance
