Hanwha Techwin AFF-TNO-4040T Overview

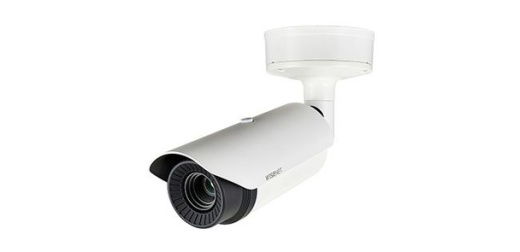

Using an uncooled microbolometer, the white AFF-TNO-4040T VGA Outdoor Thermal Network Bullet Camera from Hanwha Techwin captures 640 x 480 resolution thermal video at 30 fps. The camera's 19mm fixed lens delivers a 32° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot supports SD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G and S enables interoperability with a wide range of surveillance devices. This camera is housed in an IP66-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
- H.265, H.264, and MJPEG video codecs
- WiseStream II support
- Unicast and multicast streaming
- Up to 20 users in unicast mode
- CBR and VBR
- Digital image stabilization with built-in gyro sensor
- Analytics include; tampering, loitering, directional/virtual line detection, enter/exit, appear/disappear, audio detection, motion detection (8 polygonal zones), sound classification, shock detection, and temperature change detection
- Privacy masking for up to 32 polygonal zones
- 100M Ethernet port
- Audio input and output
- FCC, cUL, and CE certified
- High resolution thermal VGA (640 x 480) resolution
- Built-in 19mm fixed lens
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40?F ~ +140?F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Wisenet T network outdoor vandal thermal bullet camera (uncooled), 640x480 @ 30fps, 19mm fixed focal lens (32°), triple codec H.265/H.264/MJPEG with Wisestream II, SD card, advanced video analytics and sound classification, PTZ handover, open platform, DIS(Gyro), integrated back box, IP66, IK10, PoE/12VDC/24VAC, white color
Key Features- 640 x 480 Resolution at 30 fps
- 19mm Fixed Lens
- 32° Horizontal Field of View
- Two-Way Audio
- Supports SD Cards up to 256GB
- RJ45 Ethernet with PoE Technology
- Complies with ONVIF Profiles G & S
- NDAA Compliant
- IP66 & NEMA 4X Rated for Outdoor Use
- IK10-Rated Vandal Resistance
