Hanwha Techwin AFF-HCO-6020R Overview

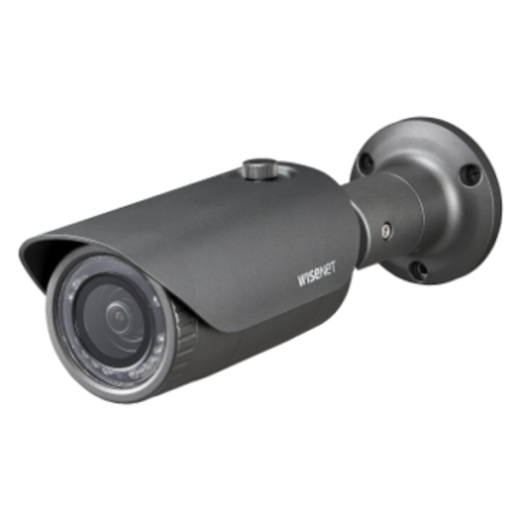

Watch your property with the dark-gray WiseNet HD+ AFF-HCO-6020R 2MP Analog HD Bullet Camera with Night Vision from Hanwha Techwin. Featuring a 1/2.8" 2MP CMOS sensor and a 4mm fixed lens, the AFF-HCO-6020R captures video at resolutions up to 1920 x 1080 at 30 fps in an 87.6 x 46.4° field of view. The AFF-HCO-6020R is equipped with IR LEDs for night vision with an effective range of up to 98'. It delivers color video in lighting conditions as low as 0.17 lux and uses a built-in automatic IR cut filter to switch from color to B&W for day/night functionality. Designed for outdoor use, the camera is housed in an IP66-rated weather-resistant enclosure.
- AHD, HD-TVI, HD-CVI, and CVBS multi-format support via BNC interface
- Up to 1920 x 1080 resolution at 30 fps
- IR LEDs for up to 98' of night vision
- Color video down to 0.17 lux at f/1.6
- Automatic IR cut filter for day/night functionality
- 4mm fixed lens
- 120 dB wide dynamic range
- Backlight and highlight compensation
- Digital noise reduction
- Defog functionality
- Motion detection
- Privacy masking
- Adjustable gain control
- Automatic white balance
- Horizontal and vertical image rotation
- Up to 1640' video transmission range over coax
- FCC, UL, and CE certified
- IP66 rated for outdoor use
- Full HD resolution
- [email protected](Color), 0Lux(B/W : IR LED on)
- 4.0mm lens
- Day & Night(ICR), WDR(120dB)
- SSNR?, Motion detection
- IR viewable length : 98 feet, IP66, 12CDC
- Transmission distance Max.500m
- Easy installation (Plug & play),Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Wisenet HD+ 2MP IR bullet camera, AHD, CVI, TVI, CVBS formats are available, 4.0 mm fixed lens, true D/N, 12VDC
Key Features- 1920 x 1080 Resolution at 30 fps
- AHD/HD-TVI/HD-CVI/CVBS Selectable Format
- IR LEDs for 98' of Night Vision
- Automatic IR Cut Filter
- 4mm Fixed Lens with f/1.6 Aperture
- 87.6 x 46.4° Field of View
- Motion Detection, Privacy Masking
- BNC Interface
- Up to 1640' Transmission over Coax
- IP66 Rated for Outdoor Use
