Hanwha Techwin AFF-HCD-6020R Overview

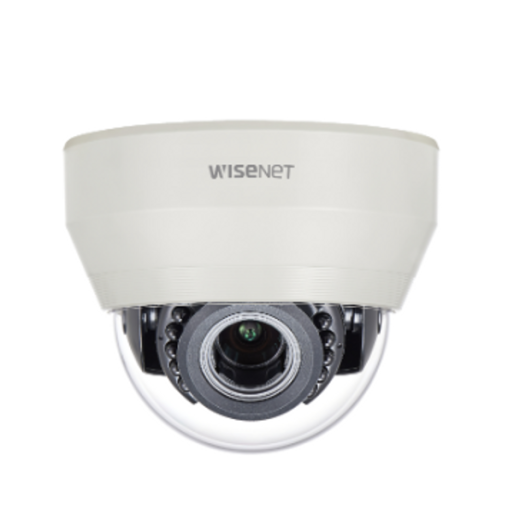

Monitor your space with the ivory AFF-HCD-6020R 2MP Analog HD Dome Camera from Hanwha Techwin. This camera uses a 1/2.8" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The camera's 4mm fixed lens delivers an 87.6° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. UTC (Up-the-Coax) connection enables OSD control of the camera.
This dome camera has a video transmission range up to 1640'.
- IR cut filter for day and night functionality
- DC auto iris
- Camera pivots from 0 to 350° horizontally and from 0 to 67° vertically
- 0 to 355° rotation range
- Manual focus control
- 1.64' minimum object distance
- 120 dB wide dynamic range
- Gain control
- Digital noise reduction (SSNR IV)
- Backlight and highlight compensation
- Defog
- White balance modes include ATW, AWC, manual, outdoor, and indoor
- Privacy masking for 8 rectangular zones
- Motion detection (4 zones)
- Horizontal and vertical reverse modes
- FCC, cUL, and CE certified
- Full HD resolution
- [email protected](Color), 0Lux(B/W : IR LED on)
- 4.0mm lens
- Day & Night(ICR), WDR(120dB)
- SSNR?, Motion detection
- IR viewable length : 65 feet, 12VDC
- Transmission distance 1640ft
- Easy installation (Plug & play),Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Wisenet HD+ 2MP IR indoor dome camera, AHD, CVI, TVI, CVBS formats are available, 4.0 mm fixed lens, true D/N, 12VDC
Key Features- 1920 x 1080 Resolution at 30 fps
- IR LEDs for Night Vision up to 65'
- 4mm Fixed Lens
- 87.6° Horizontal Field of View
- Supports HD-TVI, HD-CVI, AHD & CVBS
- UTC (Up-the-Coax) Compliant BNC
- Video Transmission up to 1640'
