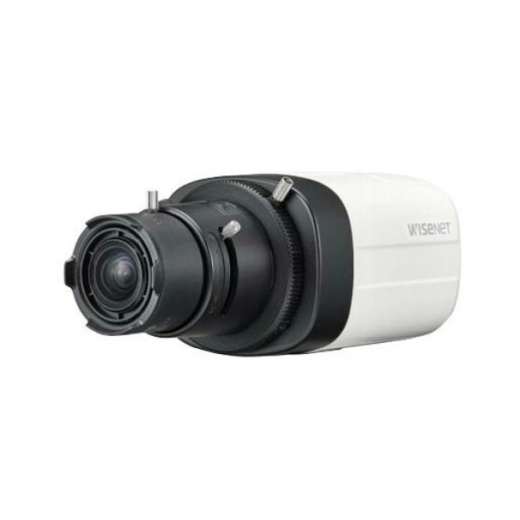

Hanwha Techwin AFF-HCB-6001 Overview
The ivory AFF-HCB-6001 from Hanwha Techwin uses a 1/2.8" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. This Analog Box Camera is equipped with a C/CS lens mount. An IR cut filter enables day and night functionality. The BNC video output provides selectable AHD, HD-TVI, HD-CVI, and CVBS video signals. This box camera has a video transmission range up to 1640'.
Features- Full HD(1920 x 1080, 30fps) resolution
- [email protected](Color), [email protected](B/W)
- Day & Night(ICR), WDR(120dB)
- SSNR?, Motion detection
- Transmission distance max.500m
- Easy installation (Plug & play), Dual power, RS-485
- Plug-and-play installation
- C/CS lens mount
- IR cut filter enables day and night functionality
- Digital noise reduction (SSNRIV)
- White balance modes include ATW, outdoor, indoor, manual, and AWC
- Backlight compensation
- 120 dB wide dynamic range
- Gain control
- 52 dB S/N ratio with AGC off and weight on
- Defog
- Motion detection for up to four zones
- Privacy masking for up to four zones (rectangular)
- Video transmission distance up to 1640'
- Reverse (horizontal, vertical, and horizontal/vertical)
- Camera title displays up to 15 characters
- Alarm output
- Supported protocols include Pelco C, ACP, Samsung-T, Samsung-E, Pelco D, Pelco P, Panasonic, Bosch, Honeywell, Vicon, GE, and AD
- Coax and RS-485 interface to control supported protocols
- Dual 24 VAC and 12 VDC power
- FCC, cUL, and CE certified
- 1920 x 1080 Resolution at 30 fps
- C/CS Lens Mount
- IR Cut Filter
- BNC Type Connection
- Supports AHD, HD-TVI, HD-CVI & CVBS
- Video Transmission up to 1640'
WiseNet HD+ 2MP, Full HD(1080p) 30fps box camera, AHD/TVI/CVI/CVBS, 120 dB True WDR, RS485 /Coaxial Control, Simple Focus, True D/N, 24VAC/12VDC (Require 2MP or higher CS Mount Lens)
