Hanwha Techwin AFF-TNB-6030 Overview
Capture and stream video to a public display monitor with the black WiseNet T Series AFF-TNB-6030 2MP Public View Monitoring Network Camera from Hanwha Techwin. Featuring a 1/2.8" 2MP CMOS sensor and a 4.6mm pinhole, the AFF-TNB-6030 captures video at resolutions up to 1920 x 1080 at 60 fps in a 73.8 x 39.6° field of view. The camera has a digital IR cut filter and offers image enhancement features including a 150 dB wide dynamic range and automatic white balance, allowing you to capture images in varying lighting conditions.
The AFF-TNB-6030 has audio input and output ports for two-way audio communication, as well as an internal microSD card slot for onboard storage of footage. PoE enables you to run just one wire for both data and power, while ONVIF compliance ensures compatibility with a wide range of surveillance devices.

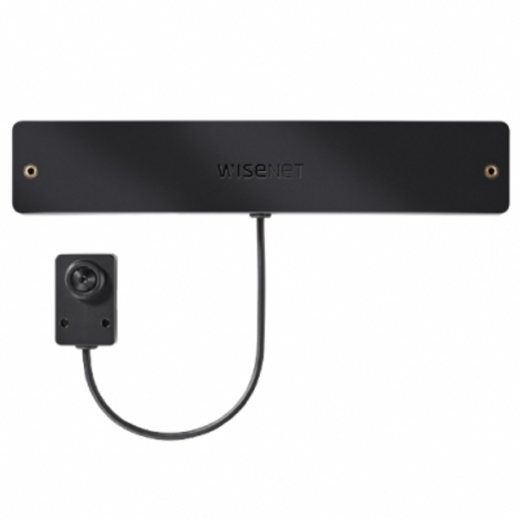

- Remote camera head with 7.87" cable
- Up to 2MP (1920 x 1080) resolution
- 4.6mm pinhole
- Up to 60 fps at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- Digital IR cut filter for day and night vision
- 150 dB wide dynamic range
- micro-HDMI video output
- Audio input and output ports for two-way audio
- Alarm input and output
- Video and audio analytics including tamper detection, loitering detection, directional detection, defocus detection, fog detection, virtual line, enter, exit, appear, disappear, face detection, motion detection, and digital auto tracking
- Face detection overlay
- "Recording in progress" text overlay and blinking
- Discreet design for public view monitoring
- Built-in microSD/SDHC/SDXC memory card slot for edge storage supports up to 256GB (microSD/SDHC/SDXC cards available separately)
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- PoE technology for easy, clutter-free installation
- Integrated Lens Distortion Correction (LDC) technology
- 1920 x 1080 Resolution at 60 fps
- Digital IR Cut Filter
- 4.6mm Fixed Lens, f/2.5 Max.
- 73.8 x 39.6° H x V Field of View
- 150 dB Wide Dynamic Range
- H.265, H.264, and MJPEG Compression
- Audio Input and Output
- microSD Card Slot Supports up to 256GB
- RJ45 Ethernet with PoE
- ONVIF Compliant, Profiles S and G
PVM camera powered by Wisenet 5, 1080p (1920x1080), micro HDMI output, 16:9 aspect ratio, face detection display for visual deterrent, customizable text overlay, 4.6mm fixed lens(73.8°H), 150dB WDR, H.265/H.264/MJPEG, WiseStream II compression technology, micro SD/SDHC/SDXC, bi-directional audio, hallway view mode
