Hanwha Techwin AFF-PNM-9022V Overview

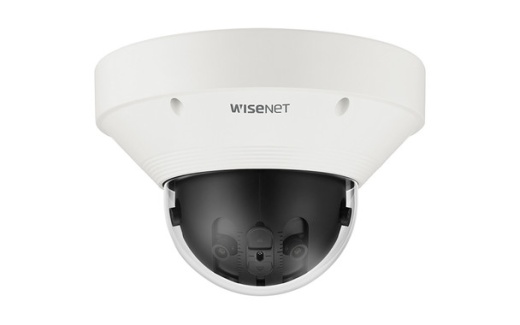

Monitor an indoor or outdoor area with the white AFF-PNM-9022V 8.3MP 4-Sensor Panoramic Network Dome Camera from Hanwha Techwin. This unit uses four 1/2.8" CMOS sensors to capture 1920 x 1080 resolution video per sensor at 30 fps, for a total resolution of 8.3MP (stitched image). The camera is equipped with four 2.8mm fixed lenses, providing a 209° panoramic field of view (switchable to 180°). Two-way audio is possible thanks to an audio input and output. Dual memory card slots accept microSD/SDHC/SDXC cards for total storage up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
- 8.3MP (4096 x 1800@180⁰, 4608 x 1800@209⁰) resolution
- 180⁰/209⁰ panoramic stitching image
- 30fps at all resolutions (H.265/H.264/MJPEG)
- H.265, H.264, MJPEG codec, WiseStream II supported
- Tampering, Loitering, Directional detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Motion detection, Handover, Heatmap
- micro SD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
- USB connector for easy setup with optional Wi-Fi adapter
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video codecs
- WiseStream II support
- Unicast and multicast streaming
- Up to 20 users in unicast mode
- CBR and VBR
- 10 streams
- 4.9' minimum object distance
- Backlight compensation
- 120 dB wide dynamic range
- Digital noise reduction (SSNR V)
- Gain control
- Defogging
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Flip and mirror video rotation
- Privacy masking for up to 32 polygonal zones
- Analytics include defocus detection, motion detection (8 polygonal zones), appear/disappear, enter/exit, tampering, virtual line, audio detection, and heat mapping
- Alarm triggers via analytics, network disconnect, and alarm input
- Alarm events include file upload via FTP/email, notifications via email, memory card recording at event triggers, and alarm output
- 100M Ethernet port
- Camera title displayed in up to 85 characters
- FCC, cUL, CE, and EAC certified
WN7 Panoramic Multi-sensor camera, 180º view, (2MP X 4 sensors) 7.3MP @ 30fps, panoramic 209º view, 8.3MP, triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR 120dB, defocus detection, built in analytics, Heatmap, Micro USB for easy installation, 2 x Micro SD cards PoE+, IP66/IK10/NEMA4X
Key Features- 4 x 2MP Sensors at 30 fps
- 8.3MP Total Resolution
- 4 x 2.8mm Fixed Lenses
- 209° Panoramic Field of View
- Two-Way Audio
- Dual microSD Card Slots for 1TB Storage
- RJ45 Ethernet with PoE Technology
- Complies with ONVIF Profiles G, S & T
- IP66 & NEMA 4X Rated for Outdoor Use
- IK10-Rated Vandal Resistance
