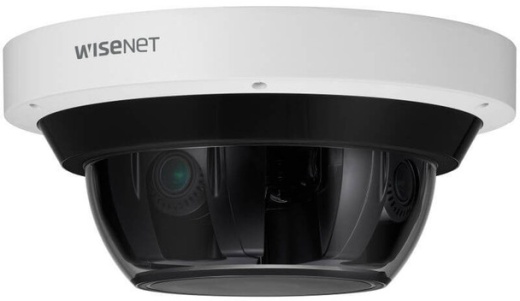

Hanwha Techwin AFF-PNM-9084RQZ Overview
Monitor an outdoor area with the white AFF-PNM-9084RQZ from Hanwha Techwin. This multidirectional PTRZ camera uses four 1/2.8" CMOS sensors to capture 1920 x 1080 resolution video per sensor at 60 fps, for a total resolution of 8MP. IR LEDs provide up to 98' of night vision. Four 3.2-10mm motorized varifocal lenses each deliver a 109 to 33.2° horizontal field of view. The Hanwha Techwin PTRZ camera features endless panning, a 30 to 80° tilt range, a 0 to 90° roll range, and 3.1x optical zoom. Two-way audio is possible thanks to an audio input and output. Four onboard memory card slots each accept microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This multi-sensor camera complies with ONVIF profiles S and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video codecs
- WiseStream II support
- Unicast and multicast streaming
- Up to 20 users in unicast mode
- Multiple streaming for up to 10 profiles
- CBR and VBR
- Simple focus control and DC auto iris
- 1.64' minimum object distance
- Electronic shutter
- Lens distortion correction
- Backlight compensation (BLC, HLC, WDR, SSDR)
- 120 dB wide dynamic range
- Digital noise reduction (SSNRV)
- Gain control
- Digital image stabilization
- Defog
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Privacy masking for up to 32 polygonal zones
- Analytics include defocus detection, directional detection, fog detection, face detection, motion detection (up to 8 polygonal zones), appear/disappear, enter/exit, loitering, tampering, virtual line, and audio detection
- Flip and mirror video rotation
- 1000M Ethernet port
- Audio input and output
- Alarm input and output
- Alarm triggers include analytics, network disconnect, and alarm input
- Alarm events include file upload via FTP and email, notification via email, microSD card at event triggers, alarm output, and handover
- HPoE injector included
- Endless panning
- 30 to 80° tilt range
- 0 to 90° roll range
- 3.1x optical zoom
- Remote adjustment (maximum 200 cycles)
- 89.9 to 422.6' (tele) detection
- 35.9 to 169' observation
- 18 to 84.5' recognition
- 9 to 42.3' identification
2MP x 4ch multi-directional camera, Motorized PTRZ support, Max. 60fps@2MP(H.265, H.264), 3.2~10mm(3.1x) motorized varifocal lens, IR viewable length : 30m, H.265, H.264, MJPEG codec, Multi streaming, Video analytics, WiseStream?, IP66, IK10, NEMA4X
Key Features- 4 x 2MP Sensors at 60 fps
- 8MP Total Resolution
- IR LEDs for up to 98' of Night Vision
- 4 x 3.2-10mm Motorized Varifocal Lenses
- 0 to 360° Pan & 30 to 80° Tilt
- 0 to 90° Roll & 3.1x Optical Zoom
- Two-Way Audio & 4 x microSD Card Slots
- Complies with ONVIF Profiles S & T
- IP66 & NEMA 4X Rated for Outdoor Use
- IK10-Rated Vandal Resistance
