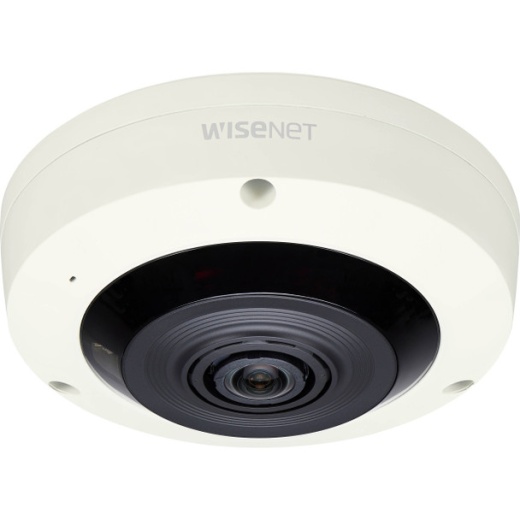

Hanwha Techwin AFF-XNF-8010R Overview
The WiseNet X Series AFF-XNF-8010R 6MP Network Fisheye Dome Camera with Night Vision from Hanwha Techwin has a 1/1.8" progressive scan CMOS sensor to capture 6MP resolution video at up to 30 fps. This fisheye indoor camera delivers a 2048 x 2048 resolution in a 360° view. In addition to fisheye views, it also delivers single panorama, double panorama, or quad views in a myriad of resolutions. Night vision provides visibility for up to 49.2' in total darkness. A 1.6mm fixed lens offers a 192° horizontal, vertical, and diagonal field of view. Two-way audio communication is supported thanks to a selectable mic in / line in / built-in mic and line out. Two built-in microSD/SDHC/SDXC card slots accept up to 512GB of edge storage in total. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance products.
- Variable view modes include fisheye, single panorama, double panorama, and quad views
- Onboard dewarping
- H.264, H.265, and MJPEG codecs supported with multiple streaming
- IR cut filter enables day and night functionality
- 120 dB True WDR
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Privacy masking for up to 32 zones
- Backlight compensation
- Gain control
- Digital image stabilization
- 50 dB S/N ratio
- 0.98' minimum object distance
- Flip/mirror functionality
- Defog
- Digital PTZ with 8x digital zoom
- Analog video output
- Alarm I/O
- Motion detection
- Focus control includes simple focus/manual, and remote control via network
- 2D and 3D digital noise reduction
- Intelligent video analytics include tampering, loitering, directional detection, virtual line, enter/exit, (dis)appear, audio detection, sound classification, people counting, heatmapping, and queue management
- Alarm triggers include alarm input, motion detection, video & audio analytics, and network disconnect
- Alarm events include file upload via FTP and email, notification via email, local storage to microSD card or NAS recording at event triggers, and external output
- Supports recording to local PC and network-attached storage (NAS)
- Streams in unicast and multicast modes
- Up to 20 users in unicast mode
- WiseStream II support
- SmartViewer and SSM video management software
- Supported browsers include Google Chrome 60, MS Edge 40, Mozilla Firefox 55 (64-bit Windows only), and Apple Safari (Mac OS X only)
- Pixel counter
- 2048 x 2048 resolution, 30fps
- Fisheye lens 1.6mm (192?X192?) W/ simple focus
- Built-in IR for up to 49? or 15m
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB @30fps
- Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
- Sound classification, heatmap, people counting and queue line management
- Dual SD card slots
- Power: PoE or 12VDC
Wisenet X powered by Wisenet 5 network indoor fisheye, 6MP CMOS sensor, 2048x2048 @ 30fps, 1.6mm fixed lens (192°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video, sound classification and business analytics, high powered IR LEDs range of 49', simple focus, dual SD card, HLC, defog detection, DIS, 12VDC/PoE
Key Features- 360° View
- 2048 x 2048 Resolution at up to 30 fps
- Up to 49' of Night Vision
- 1.6mm Fixed Lens
- 192° Horizontal, Vertical & Diagonal FOV
- Built-In Microphone
- Two-Way Audio
- Up to 512GB microSD Edge Storage
- RJ45 Ethernet with PoE Technology
- ONVIF-Compliant, Profiles S & G
