Hanwha Techwin AFF-XNV-6120R/LPR Overview

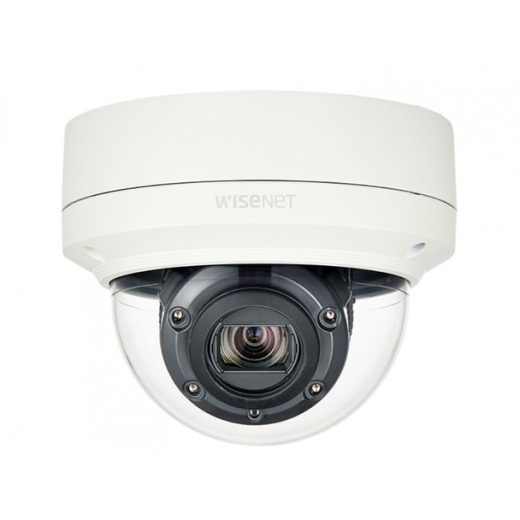

Capture vehicle license plate numbers with the ivory AFF-XNV-6120R/LPR 2MP Network Parking Lot Dome Outdoor Camera from Hanwha Techwin. It has a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 60 fps. It features an embedded LPR (license plate recognition) software application. This unit captures license plate information from vehicles traveling at up to 35 mph at distances up to 40' away. IR LEDs provide up to 230' of night vision. The camera's 5.2-62.4mm varifocal lens delivers 12x optical zoom and a 54.58 to 5.3° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. A built-in memory card slot accepts SD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G and S enables interoperability with a wide range of surveillance devices. This NDAA-certified camera is housed in an IP67-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
- 2 megapixel (1920 x 1080) resolution
- Designed for low speed and stop and go applications up to 35 MPG
- No server needed. The application runs directly on the camera and is licensed and ready-to-go.
- 12X optical zoom (5.2 ~ 62.4mm) (54.58? ~ 5.30?)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, handover
- SD/SDHC/SDXC memory slot (Maximum 512GB)
- Hallway view, WiseStream II support
- High powered IR LEDs with readable length for LPR 65 ft, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, Bi-directional audio support
- Open platform
- Captures plate numbers from vehicles traveling at up to 35 mph
- Captures one plate per second
- 95% LPR read accuracy
- 10 fps minimum and 20 fps maximum required frame rate
- 4' minimum and 14' maximum camera height installation
- 10' minimum and 40' maximum license plate capture distance
- 20° maximum horizontal plate angle
- 20° maximum vertical plate angle
- 3° maximum plate rotation angle
- Minimum character height of 20 pixels
- Data transfer method includes; FTP, SMTP, and JSON push commands
- IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video codecs
- WiseStream II support
- Unicast and multicast streaming
- Up to 20 users in unicast mode
- CBR and VBR
- Electronic shutter speed
- DC auto iris
- 6.89' minimum object distance
- Camera pivots from 0 to 354° horizontally and from 0 to 75° vertically
- 0 to 355° rotation
- Lens distortion correction
- BLC, HLC, and 150 dB WDR
- SSDR contrast enhancement
- 2D-DNR and 3D-DNR
- Adjustable white balance
- Privacy masking for up to 32 rectangular zones
- Flip and mirror video rotation (90, 270°)
- 100M Ethernet port
- Audio input and output
- Alarm input and output
- Analytics include; loitering, motion detection (8 polygonal zones), directional detection, fog detection, and audio detection
- Alarm triggers include; alarm input, motion detection, analytics, and network disconnect
- Alarm events include; file upload via FTP and email, notification via email, SD card or NAS recording at event triggers, external output, and preset
- NDAA, FCC, cUL, and CE certified
Wisenet X powered by Wisenet 5 network IR outdoor Low Speed LPR dome camera for Parking Lots; Drive-thrus; and Entry Gates up to 35MPH, 2MP, Full HD(1080p) @60fps, 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, backbox included, 12VDC/24VAC/PoE, IP67, IK10, NEMA4X, -40°C ~ +55°C (-40°F ~ +131°F) CARE IS RECOMMENDED IN SELECTING MOUNTING LOCATION See Quick Start Guide Step 1. DEALER TRAINING OR HANWHA ENGINEER CONSULT RECOMMENDED BEFORE INSTALLING.
Key Features- License Plate Recognition Software
- 1920 x 1080 Resolution at 60 fps
- IR LEDs for Night Vision up to 230'
- 5.2-62.4mm Varifocal Lens
- 54.58 to 5.3° Horizontal Field of View
- Two-Way Audio Communication
- Supports SD/SDHC/SDXC Cards
- Complies with ONVIF Profiles G & S
- IP67 & NEMA 4X Rated for Outdoor Use
- IK10-Rated Vandal Resistance
