Hanwha Techwin AFF-PNM-9084QZ Overview

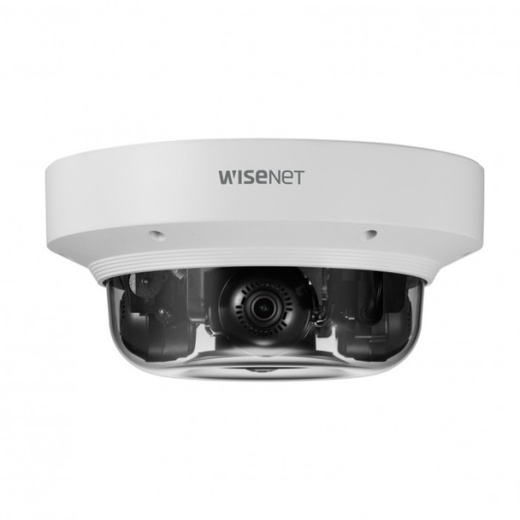

Monitor your property with the WiseNet P Series AFF-PNM-9084QZ 8MP Outdoor PTRZ Four-Sensor Network Dome Camera from Hanwha Techwin. Featuring an omnidirectional array of four 2MP sensors with 3-6mm motorized varifocal lenses, this camera captures four views, each with a field of view of 107 to 56.3° in a resolution of up to 1920 x 1080 at 60 fps. The camera delivers color video in lighting conditions as low as 0.08 lux and uses a built-in IR cut filter to switch from color to B&W for day/night functionality.

Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. Four built-in microSD card slots allow for onboard storage of footage, while audio in/out ports enable two-way talk. PoE technology simplifies installation by enabling you to run just one cable for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.

  • Four 2MP 1/2.8" CMOS sensors
  • Four 3-6mm motorized varifocal lenses for 2x zoom
  • DC auto iris
  • 107 to 56.3° field of view per lens
  • Pan (0 to 360°), tilt (0 to 90°), rotate (0 to 90°), and zoom functionality for setup purposes
  • H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
  • Up to 60 fps at 2MP (H.265 and H.264)
  • WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
  • Multiple streaming
  • Color video down to 0.08 lux at f/2.2
  • Automatic IR cut filter for day/night functionality
  • 120 dB wide dynamic range and SSDR technology
  • Backlight and highlight compensation
  • SSNR V digital noise reduction
  • Digital image stabilization
  • Adjustable gain control
  • Auto/manual white balance
  • Lens distortion correction (LDC)
  • Flip/mirror image
  • 90°/270° hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
  • Audio input and output for two-way audio communication
  • Alarm input and output
  • Video and audio analytics including defocus detection, directional detection, fog detection, face detection, face detection, motion detection, appear/disappear, enter/exit, loitering detection, tampering detection, virtual line, and audio detection
  • Privacy masking for up to 32 polygonal zones
  • Four microSD/SDHC/SDXC memory card slots for edge storage support up to 256GB each (microSD cards available separately)
  • HPoE technology for easy, clutter-free installation
  • HPoE injector included
  • IP66 rated for outdoor use
  • IK10-rated vandal resistance
  • ONVIF Profiles S and T compliant

Wisenet P series network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP X 4 sensors) 8MP @ 60fps, motorized vari-focal lens 2x (3.0~6.0mm) (107°~56.3°), PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus detection, built in analytics, true D/N, 4x SD card, hallway view, HLC, defog detection, Bi-Directional Audio, Alarm I/O 1/1, HPoE (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White
