Hanwha Techwin AFF-XNV-8081Z Overview

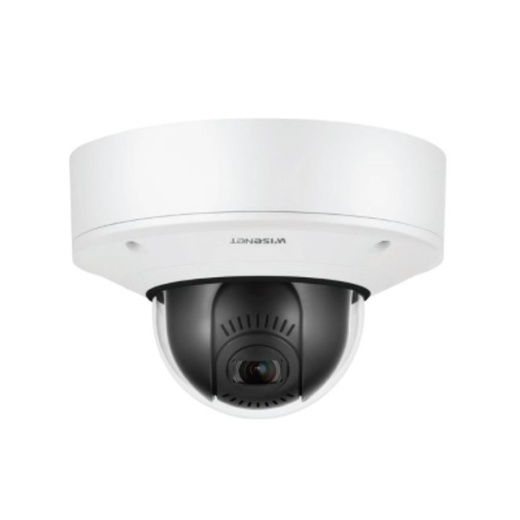

Keep a watchful eye on your property with the white WiseNet X Series AFF-XNV-8081Z 5MP Outdoor PTZ Network Dome Camera from Hanwha Techwin. Equipped with a 1/1.8" 6MP CMOS sensor and a 3.6-9.4mm motorized varifocal lens, this PTRZ camera captures video at resolutions up to 2560 x 1920 at 30 fps in a 102.5 to 38.7° field of view. The camera has an automatic IR cut filter and offers image enhancement features, including a 120 dB wide dynamic range and automatic white balance, to capture images in varying lighting conditions.
The AFF-XNV-8081Z has PTZ functionality with ±175° pan, 0 to 85° tilt, and 2.6x optical zoom. It also has audio input and output ports for two-way audio communication, and two microSD card slots for onboard storage of footage. Designed for use in vandal-prone outdoor locations, the camera is housed in an IP67- and IK10-rated enclosure. PoE technology enables you to run just one cable for both data and power, while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
- Up to 5MP (2560 x 1920) resolution at 30 fps
- Built-in 3.6-9.4mm motorized varifocal lens
- Remote ±175° pan, 0 to 85° tilt, and ±175° rotation
- Color vision down to 0.07 lux
- B&W vision down to 0.007 lux
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- IR cut filter for day/night functionality
- 120 dB wide dynamic range
- Defog functionality
- Audio input and output for two-way communication
- Video and audio analytics including defocus detection, directional detection, fog detection, face detection, motion detection, digital auto tracking, appear, disappear, enter, exit, loitering, tampering, virtual line, audio detection, sound classification, and shock detection
- People counting, queue management, and heatmaps
- Two built-in microSD/SDHC/SDXC memory card slots for edge storage support a total of up to 512GB (memory cards available separately)
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- Integrated Lens Distortion Correction (LDC) technology
- PoE technology for easy, clutter-free installation
- IP67 and IP6K9K rated for outdoor use
- Vandal-resistant enclosure rated IK10+
- 2560 x 1920 Resolution at 30 fps
- Automatic IR Cut Filter
- 3.6-9.4mm Lens with f/1.2-2.4 Aperture
- 102.5 to 38.7° Field of View
- Audio Input & Output for Two-Way Talk
- ±175° Pan and 0 to 85° Tilt
- 2 microSD Card Slots Support up to 512GB
- RJ45 Ethernet with PoE
- ONVIF Compliant, Profiles S and G
- IP67 Weather and IK10 Vandal Resistance
Wisenet X series Plus powered by Wisenet 5 network outdoor vandal dome camera, modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), PTRZ, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, Nema 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover
