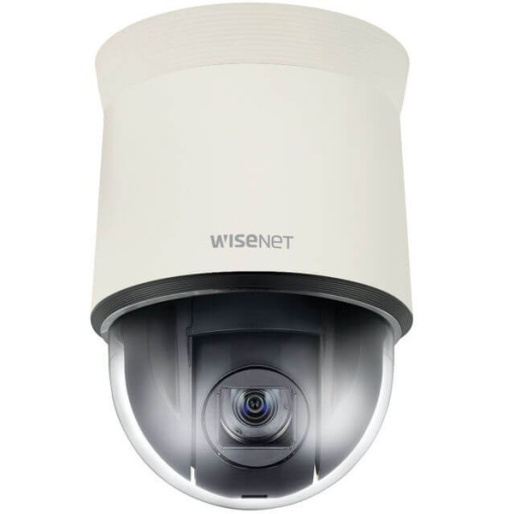

Hanwha Techwin AFF-QNP-6230 Overview
Keep a close watch on your property with the WiseNet Q Series AFF-QNP-6230 2MP PTZ Network Dome Camera from Hanwha Techwin. Equipped with a 1/2.8" 2.4MP CMOS sensor and a 4.44-102.2mm varifocal lens, the AFF-QNP-6230 captures video at resolutions up to 1920 x 1080 at 30 fps in fields of view ranging from 61.8 x 36.2° to 3.08 x 1.73°. The camera has an automatic IR cut filter and offers image enhancement features including a 120 dB wide dynamic range and automatic white balance for capturing images in varying lighting conditions.
The AFF-QNP-6230 has PTZ functionality, with 360° endless pan, 210° tilt, and 23x optical zoom. Audio input and output connections allow for two-way audio communication. Designed for easy setup, the AFF-QNP-6230 uses PoE+ technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
- Up to 2MP (1920 x 1080) resolution
- Built-in 4.44-102.2mm 23x varifocal lens
- 32x digital zoom
- Up to 30 fps at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- Automatic IR cut filter for day and night vision
- 120 dB wide dynamic range
- Digital image stabilization with built-in gyro sensor
- Intelligent video analytics including tamper and motion detection
- microSD/SDHC/SDXC memory card slot for edge storage supports up to 256GB (microSD/SDHC/SDXC cards available separately)
- PoE+ technology for easy, clutter-free installation
- Vandal-resistant housing available separately (SHP-3701H)
- 1920 x 1080 Resolution at 30 fps
- Automatic IR Cut Filter
- 4.44-102.2mm Lens, f/1.6-3.6 Aperture
- 61.8 to 3.08° Horizontal FOV
- 360/210° Pan/ Tilt, 23x Optical Zoom
- Input and Output for Two-Way Audio
- microSD Card Slot Supports up to 256GB
- RJ45 Ethernet with PoE+
- ONVIF Compliant, Profiles S and G
Wisenet Q network indoor PTZ camera, 2MP, Full HD(1080p) 30fps, H.265/H.264/MJPEG, Optical Zoom Lens 23x (4.44-102.1mm), 120dB WDR, true D/N, 500°/sec Pan, SD/SDHC/SDXC, 24VAC/PoE+
