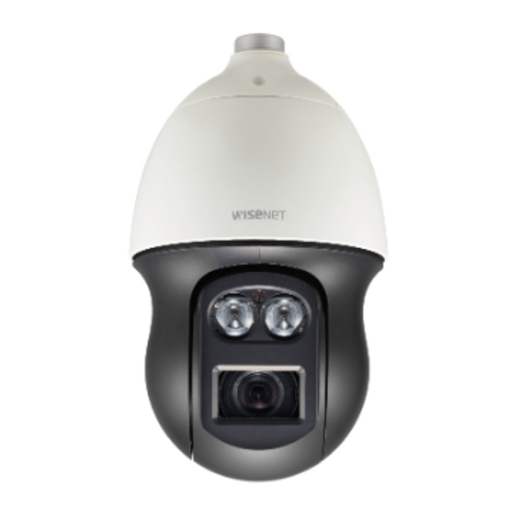

Hanwha Techwin AFF-XNP-6320RH Overview
Watch your property with the ivory WiseNet X Series AFF-XNP-6320RH 2MP PTZ Network Dome Camera with Night Vision from Hanwha Techwin. Featuring a 1/2.8" 2MP CMOS sensor and a 4.44-142.6mm motorized lens for 32x zoom, this infrared PTZ camera captures video at resolutions up to 1920 x 1080 at 60 fps in a 61.8 to 22.19° horizontal field of view. An automatic IR cut filter is used to switch from color to B&W for day/night operation. The camera integrates a high-speed pan/tilt system for 360° continuous panning and 95° tilting at up to 400° and 250° per second, respectively.
Designed for use in vandal-prone outdoor locations, the AFF-XNP-6320RH is housed in an IP66- and IK10-rated enclosure. PoE technology simplifies installation by enabling you to run just one cable for both data and power. Two integrated microSD card slots allow for edge storage, while audio input and output ports make two-way talk possible. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
- Up to 2MP (1920 x 1080) resolution at 60 fps
- Built-in 4.44-142.6mm motorized varifocal DC-iris lens
- Color vision down to 0.05 lux at f/1.6
- IR LEDs for up to 656' of night vision
- Automatic IR cut filter for day/night functionality
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- 150 dB wide dynamic range
- Defog functionality
- Audio input and output for two-way audio communication
- Video and audio analytics including directional detection, virtual line, fog detection, face detection, motion detection, appear, disappear, enter, exit, loitering detection, tampering detection, audio detection, sound classification, and shock detection
- Two microSD/SDHC/SDXC memory card slots for edge storage support a total of up to 512GB (microSD/SDHC/SDXC cards available separately)
- Digital image stabilization with built-in gyro sensor
- 360° endless pan and -5 to 90° tilt
- Pan speeds up to 400° per second
- Tilt speeds up to 250° per second
- Rotates around cardinal and intermediate axes
- 300 PTZ presets
- PoE technology for easy, clutter-free installation (HPoE injector included)
- IP66 rated for outdoor use
- IK10-rated vandal resistance
- 1920 x 1080 Resolution at 60 fps
- IR LEDs for Night Vision up to 656'
- 4.44-142.6mm 32x Zoom Lens, f/1.6-4.4
- 61.8 to 22.19° Horizontal Field of View
- 360° Endless Pan & 95° Tilt
- Input and Output for Two-Way Audio
- 2 x microSD Card Slots, up to 512GB
- RJ45 Ethernet with PoE
- ONVIF Compliant, Profiles S, G & T
- IP66 Weather & IK10 Vandal Resistance
Wisenet X powered by Wisenet 5 network IR PTZ camera, IR range for up to 656', 2MP, Full HD(1080p) @60fps, triple codec H.265/H.264/MJPEG, 32x optical zoom lens (4.44mm ~142.6mm) (61.8º ~ 2.19º), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, advanced video analytics and sound classification, auto tracking, true D/N, dual SD card, HLC, defog detection, DIS(Gyro), IP66/IK10, 24VAC/HPoE
