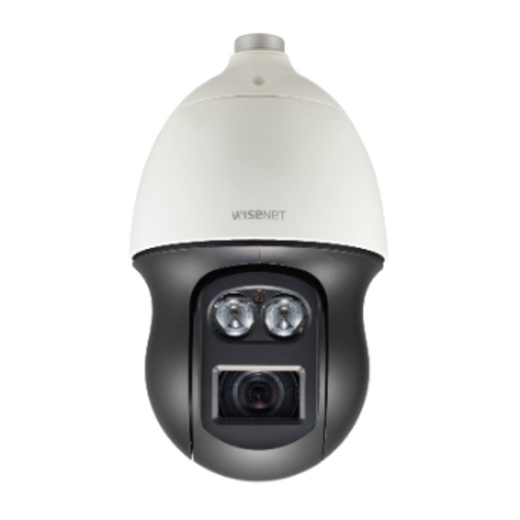

Hanwha Techwin AFF-XNP-6550RH Overview
The Wisenet X Series 2MP Outdoor PTZ Network Dome Camera with Night Vision from Hanwha Techwin uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution at 60 fps. The 4.75-261.4mm lens delivers a 58.6 x 34.8 to 1.23 x 0.71° field of view. The camera supports microSD/SDHC/SDXC cards up to 512GB. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 1640'. This dome camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices.
- Up to 1920 x 1080 video resolution
- 4.75-261.4mm lens provides 55x optical zoom
- H.265, H.264, and MJPEG video compressions
- IR cut filter for day and night functionality
- WiseStream support
- Unicast and multicast streaming
- Up to 20 users at Unicast mode
- CBR and VBR
- 32x Digital Zoom
- Camera pivots from 0 to 360° horizontally and from 0 to 95° vertically
- DC auto iris
- 50 dB S/N ratio
- 120 dB wide dynamic range
- Digital noise reduction (SSNR5)
- Manual gain control
- White balance modes include ATW, AWC, manual, indoor, outdoor, mercury, and sodium
- Pixel counter
- Motion detection for up to eight polygonal zones
- Privacy masking for up to 24 rectangular zones
- Flip and mirror view support
- RS-485 port for serial control interface
- Alarm input and output
- Intelligent video analytics include tampering, loitering, directional detection, fog detection, virtual line, enter/exit, appear/disappear, audio detection, face detection, motion detection, and sound classification
- Alarm triggers include alarm input, motion detection, intelligent video analytics, and network disconnect
- Alarm events include file upload via FTP and email, local storage recording at event, notification via email, and external output
- Compatible with Windows 7, 8.1 & 10, Mac OS X 10.9, 10.10, 10.11, and 10.12, Chrome, Microsoft Edge, Mozilla Firefox, Apple Safari 10 (Mac OS X only), and MS Explorer 11
- Camera title settings in English and Chinese
- Camera is made of aluminum and plastic with black head and ivory body
- FCC, cUL, CE, and EAC certified
- 2MP 1920 x 1080 Resolution at 60 fps
- Night Vision Functionality
- 4.75-261.4mm Focal Length
- f/1.6 Aperture
- Optical 55x Zoom
- 58.6 x 34.8 - 1.23 x 0.71° Field of View
- Two-Way Audio
- Dual microSD Slots Support up to 512GB
- ONVIF-Compliant, Profile S and G
- IP66 & IK10 Rated for Outdoor Use
Wisenet X powered by Wisenet 5 network outdoor PTZ camera, 2MP, Full HD(1080p) @ 60fps, 55X optical zoom lens (4.75mm ~ 261.4mm) (58.6º ~ 1.23º), Pan: 360° endless. Tilt: -5°~ 185°, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, built-in IR 1640ft (500m), USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, HLC, defog (optical) DIS(Gyro),24VAC/HPoE, IP66/IK10, -58°F ~ +131°F W/ 24VAC power supply
