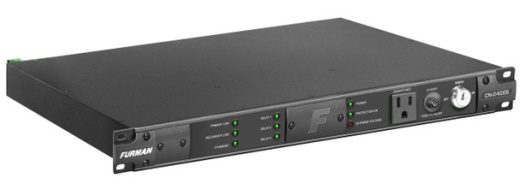

Designed for Commercial A/V Installers, the AFF-CN-2400S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required, sold separately).
The new AFF-CN-2400S is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.
In addition, the AFF-CN-2400S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.
- Surge Protection: Series Multi-Stage Protection (SMP)Technology provides the highest level ofsurge & spike protection available.
- Noise Filtration: Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
- Voltage Protection: Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
- SmartSequencing™: SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
- Diagnostic Lights: Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.
- Remote Access (RS-232): RS-232 compatibility & command set provide integration with control systems, open source and control programming.
- BlueBOLT Compatible®: BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.
- Nine Total Outlets: The AFF-CN-2400S contains eight rear panel NEMA 5-20R outlets and one front panel NEMA 5-15R outlet.
From concert halls to home theaters, Furman delivers the ultimate performance, protection, monitoring and management for electrical systems. Purifying power for over 40 years, our technology remains the number one choice of professional musicians and venues.
