Crown Amplifier Switcher

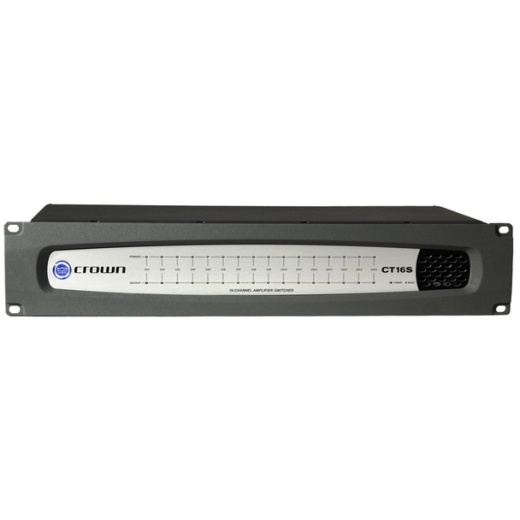

Crown Amplifier Switcher, AFF-AFF-CT16S

Crown Amplifier Switcher, AFF-AFF-CT16S The AFF-AFF-CT16S amplifier switcher gives users of public address systems confidence that their system is operational. Each amplifier switcher has 16 primary amplifier inputs (which connect to the amplifier outputs), 16 backup amplifier inputs (which connects to the amplifier outputs), and 16 outputs. The AFF-AFF-CT16S is capable of handling 2 Amps Continuous for up to 1000W per channel. In the event that a failed channel is detected, the unit can switch the failed channel to an idle backup channel. Once the primary amplifier channel is back online, the unit will switch the backup channel back to the primary channel. All errors and switch operations will be reported to the management software. The AFF-AFF-CT16S hardware supports backup ratios ranging from 16:1 to 1:1; the exact ratio available is determined by the control system being used. A series of programmable GPIO’s can be used to connect the AFF-AFF-CT16S to external control devices. A total of 16 control inputs and 5 control outputs are built into the AFF-AFF-CT16S to provide enough control inputs for emergency use (for connection to local fire alarm contacts). In addition to the GPIO, an Ethernet connector is provided for additional configuration and control.

Acquired by Harman International in March of 2000, Crown has continued to move forward, producing numerous innovative designs, such as the DriveCore™ Install (DCi) series that was released in 2013. This series features both analog and Network amplifiers for the installed sound market. Using just one tiny chip to replace over 500 parts makes the DCi series of amplifiers the most reliable and innovative amplifier on the market today. These products and more embody the reliability and innovativeness that have long been the manufacturer’s hallmarks. Crown today continues to delight its customers with products that consistently exceed both specifications and expectations, even on the most demanding tours and installations.
