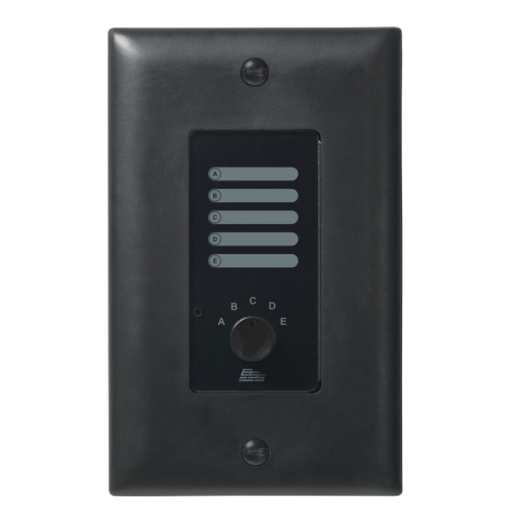

BSS Audio Analog Controller with 5 Sources (Black - US), AFF-AC-5S-BLK-US
The Soundweb Contrio AC-5S is a simple analog wall controller designed for use with BSS Audio Soundweb London devices.
The is designed to connect to General Purpose Inputs (GPI) (also known as “Control Inputs”) found on Soundweb London devices. Most Soundweb London devices contain 12 GPI. The Soundweb London BLU-GPX contains 36 GPI.
The AC-5S contains a single five-position resistor ladder which is useful for source selection or preset recall. The AC-5S requires one GPI. Therefore, up to 12 AC-5S controllers can connect to a single Soundweb London device, and up to 36 AC-5S controllers can connect to a single BLU-GPX.
The AC-5S is configured using HiQnet London Architect or HiQnet Audio Architect via simple drag and drop operations. While almost any parameter can be mapped to the physical controls, the AC-5S is most commonly used for source selection or preset recall.
Features
- Analog Wall Controllers
- Cost-Effective Control Solution
- AC-V for Volume Control
- AC-5S for Source Select / Preset Recall
- Compatible with BSS Audio Soundweb London devices
- Black
- Available in US Decora
- Single-Gang Size
- Configured in London Architect or Audio Architect via Drag-and-Drop
