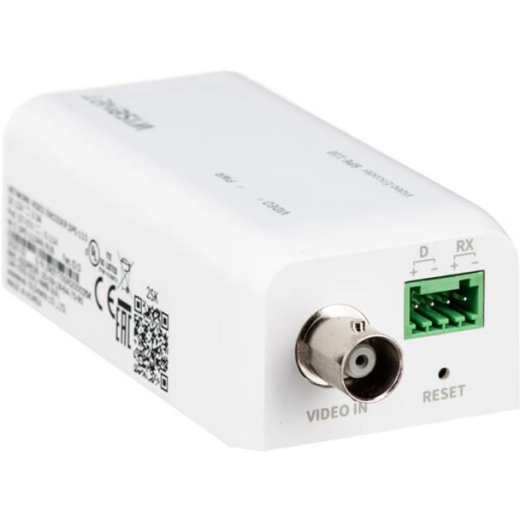

Hanwha Techwin AFF-SPE-110 Overview
Convert video from an analog camera to IP video with the AFF-SPE-110 1-Channel Network Video Encoder from Hanwha Techwin. This unit takes an analog signal input (HD-TVI, HD-CVI, AHD & CVBS) from a single channel and encodes it as digital video. H.264 and MJEPG video codecs reduce bandwidth and storage requirements. The AFF-SPE-110 supports up to 4MP resolution video at 15 fps. An RS-485/422 interface enables PTZ camera control.
This encoder supports the 802.3af PoE. Compliance with ONVIF profile S enables interoperability with a wide range of surveillance devices.
- Auto and manual detection of HD-TVI, HD-CVI, AHD, and CVBS signals
- H.264 and MJPEG video codecs
- Dual streaming (up to 3 profiles per channel)
- Unicast and multicast streaming (up to 20 users in unicast mode)
- CBR and VBR
- Motion detection for up to 4 rectangular areas
- Alarm triggers include motion detection, video loss, and tampering
- Alarm events include file upload via FTP and email
- Privacy masking for up to 4 rectangular zones
- Deinterlacing support
- 100M Ethernet port
- RS-485/422 remote control interface
- Coaxial control
- Supports Windows (7, 8.1, 10), Mac OS X (10.10, 10.11, 10.12), Chrome 63, Microsoft Edge 41, Firefox 57 (Windows 64-bit only), Safari 11 (Mac OS X only), and Internet Explorer 11
- Compatible with iOS, Android SmartViewer, SSM, WiseNet Mobile Viewer, and select Hanwha Techwin NVRs (P/X/Q series)
- FCC, cUL, CE, and EAC certified
- Up to 4 MP resolution
- Max. 15fps@4MP, Max. 30fps@2MP
- Supports AHD, CVI, TVI, & CVBS video formats
- Motion detection, Video loss, Tampering
- H.264, MJPEG codec support
- ECO. Stream. bandwidth reduction technology per channel/profile (firmware v1.30+)
- Multiple streaming (Up to 3 profiles per channel)
- Coaxial control, 10/100 Base-T
Encoder, 1CH H.264/MJPEG, 30fps @ 2MP or lower and 15fps @ 4MP, AHD/CVI/TVI/CVBS compatible, RS-485/422 Interface, Pelco C when using CVBS or ACP up-coax protocol @ AHD, ONVIF protocol support, 12VDC/ PoE
Key Features- 1-Channel Encoder
- Supports HD-TVI, HD-CVI, AHD & CVBS
- Supports 4MP Resolution at 15 fps
- H.264 & MJPEG Video Codecs
- RS-485/422 Interface
- 802.3af PoE
- Complies with ONVIF Profile S
