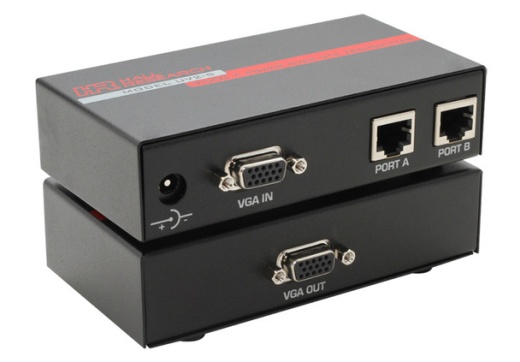

The Model AFF-UV2-S is a 2-channel video splitter that can send a VGA or component video signal to multiple displays on Cat5 cable. This unit feature a standard HD15 VGA connector for the input and has 2 RJ45 connectors for the outputs. It also provide an additional VGA output for connection to a local monitor. The AFF-UV2-S can drive Cat5 cables of lengths up to 500 feet. At the remote (receiving) end of the Cat5 cables a Model UV1-R is required to convert the UTP signal back to VGA for connection to a monitor. In most setups only one power supply is necessary for the entire system. The AFF-UV2-S Sender/Splitter come with a power supply that is capable of powering itself and all the UV1-R receivers. For Cat5 runs of over 300 feet, the receivers need their own additional supplies that must be ordered separately (HRT model # 511-GS569). Made in the USA.
Features- Amplifies the signal for clean and crisp transmission
- Handles resolutions up to 1920x1440 at 60Hz
- Rugged, Reliable, Compact size
- Drive standard CAT5 cables to 500 feet for (VGA and Component Video) or to 2000 feet for (Composite Video + Audio)
- Support for local monitor at transmitter
- Multiple Cat5 outputs
- Transmit video and phantom power on one cable
- Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
- Differential signaling eliminates ground loops and noise
- Dimensions: 1.22" H x 4.86" W x 2.6" D
- Weight: 3 lbs. (shipping)
- Power Supply: From utility-power (mains) outlet, through included external Universal power supply. Output Voltage: 9 DC Center-Positive, Do not substitute any other external power supply without contacting the factory first
- Max Distance: Up to 500 ft. (150 m) for VGA and Component Video models, or 2000 ft (609 m) for Composite Video and Audio models
- Resolution: Up to 1920 x 1440 non-interlaced at 60Hz
- Standards: VGA, SVGA, XGA, or UXGA video
- Video Types: VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr
